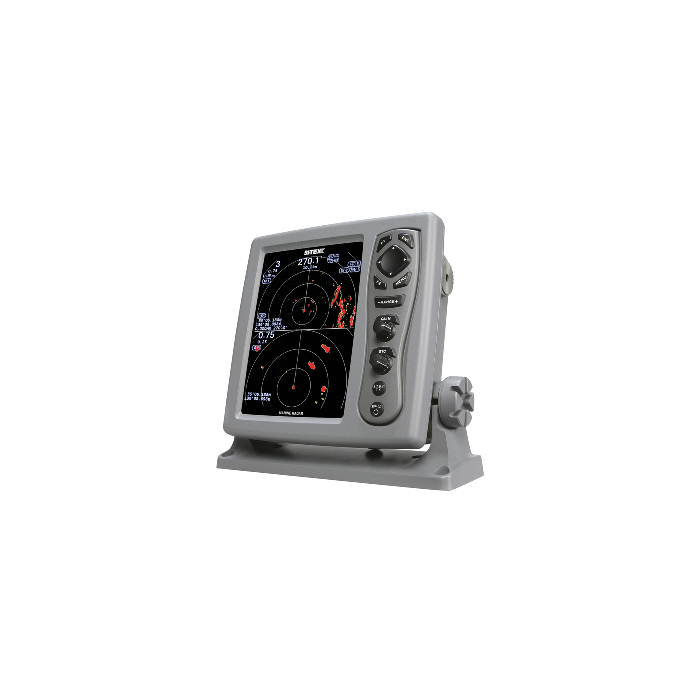

SITEX 8.5" COLOR LCD RADAR W/ 4KW OUTPUT 1/16 - 48NM RANGE T-940A-3

8.5" Color LCD Radar with 4kW Output 1/16-48NM Range - 3.5' Open Array Antenna

SI-TEX's T-940-3 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

• Display: 8.4" TFT Color LCD
• Includes 3.5' Open Array, Output: 4 kW
• Power: 12 / 24 Volt DC, Consumption: 70 Watts

In the Box:

• Display UnitMRD-103 with hardcover
• Connecting Cable 242J158055A -10 M with 2 connectors
• DC Power Cable CW265-2M 2m
• CCD Camera Cable CW-405-0.3M
• Operation manual, Quick reference
• Fuse (8A)

Additional Features:

• It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets

Radome:

• 4kW
• 48NM
• 3-1/2' Open Array

Display:

• Brilliant 8.4" color LCD daylight viewable display
• 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
• True-color radar feature displays echoes in different colors depending on signal strength
• The real-time presentation offers smooth movement as bearing changes
• The T-940 has two-speed antenna rotation for tracking quick-moving, close-in targets:
  • 48 RPM
  • 24 RPM (Requires 24 Volt DC input)
• Selectable range scales from 1/16 NM
• Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
• Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
• RGB output for connecting (2) optional external monitors
• Easy access to all system functions with a simply arranged keypad, programmable function keys, comprehensive menus, and dedicat
