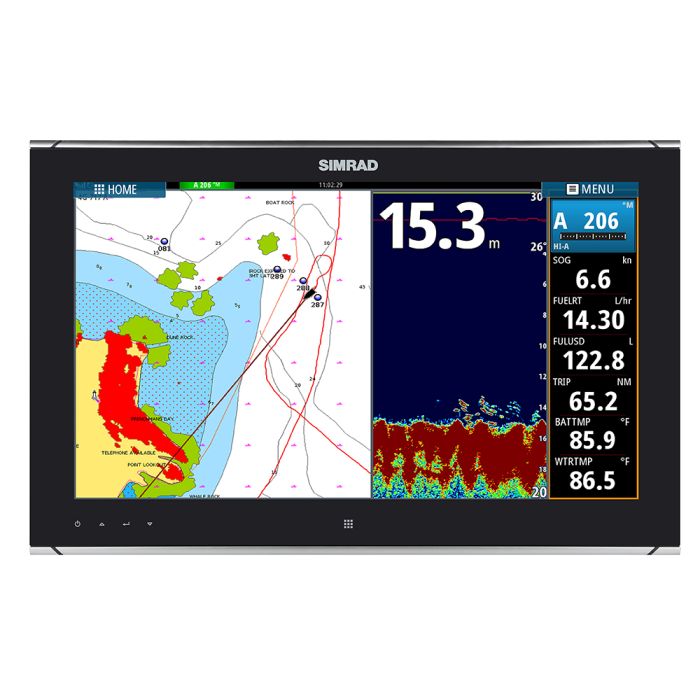

Simrad MO19-T 19" Widescreen High Bright, Multi-Touch Monitor 000-11262-001
$6,546.03
Out of stock
SKU
JMS299064
Simrad MO19-T 19" Widescreen High Bright, Multi-Touch Monitor
19" Widescreen High Bright, Multi-Touch Monitor
Features:
High Definition Widescreen Displays
Specifications:
Features:
- Low Profile Glass Bridge Design
- More Screen, Less Border
- Widescreen Displays, HD Resolutions
- Touch/Non-Touch Option
- High Bright Backlight Option
- Picture in Picture
- On-Glass Menu Keys
- VESA bracket Mounting Option
- IP66 in Dash Mounting
- Suitable for any monitor application (not limited to Simrad)
High Definition Widescreen Displays
- Higher Definition LCD panels enable more information to be presented on the display
- For a defined chart zoom level, user can see a larger area of chart in full detail
- For an echo sounder panel, more vertical pixels means more vertical resolution and target detail in the water column
- Wide LCD format makes more effective use of boat dashboard space
- Widescreen aspect ratios give more usable panel shapes in split modes
Specifications:
- EnclosureABS Plastic Rear Case, Glass Front
- Operating Temperature: -15°C to +55°C
Non-Operating Temperature: -20°C to +60°C - Water Ingress:IPx6 (When dash mounted), IPx2 from back
- Weight: 4.60Kg
- Dimensions (WxHxD)mm: 478 x 305 x 74
- Display Brightness: 1000nit
- Display Resolution: 1366 x 768
- Display Viewable Area (WxH)mm: 410 x 230
- Display Colour Depth: 16.7 Million Colours
- Display Viewing Angle H/V deg: 60/60/60/60
- Contrast Ratio: 1000:1
- Capacitance Multi Touch: Yes
- Operating voltage: 12 - 31.2 V DC
- Power consumption (nominal): 25W
- Low power standby mode: Yes
- Protection: reverse polarity and temporary over-voltage to 36V
- Conformity: CE, C-Tick, HDMI
- Power and Setup Keys: Capacitive Touch - Power Key, Up, Enter, Down, Home
- NMEA 2000: 1 port on rear (Micro-C male)
- Composite Video inputs: 2 ports on rear (BNC female. NTCS or PAL format)
- Digital Video Inputs: 2 ports on rear (1 x DVI-D, 1 x HDMI)
- Supported Video Resolutions: 640x480(VGA 4:3), 800x600 (SVGA 4:3), 1024x768 (XGA 4:3), 1280x720 (HD 16:9), 1280x800 (16:10), 1280x1024 (SXGA 5:4),1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200(WUXGA 16:10)
- USB: USB Type-B Plug on rear for alternate touch screen connection
- Serial: 4 way serial plug on rear for touch screen connection via RS422 to NSO evo2
- Picture in Picture: Yes, Variable size and position
- Thermal Protection: Automatic - Backlight reduced to 10%
- Menu Languages: English, French, German, Spanish, Italian, Portuguese
| UPC Code | 9420024127780 |
|---|---|
| Manufacturer Part Number | 000-11262-001 |
| Manufacturer | Simrad |
