Simrad HLD-2000MK2L Long Linear Drive Unit - 12V 21113360
$2,255.00
Out of stock
SKU
JMS208999

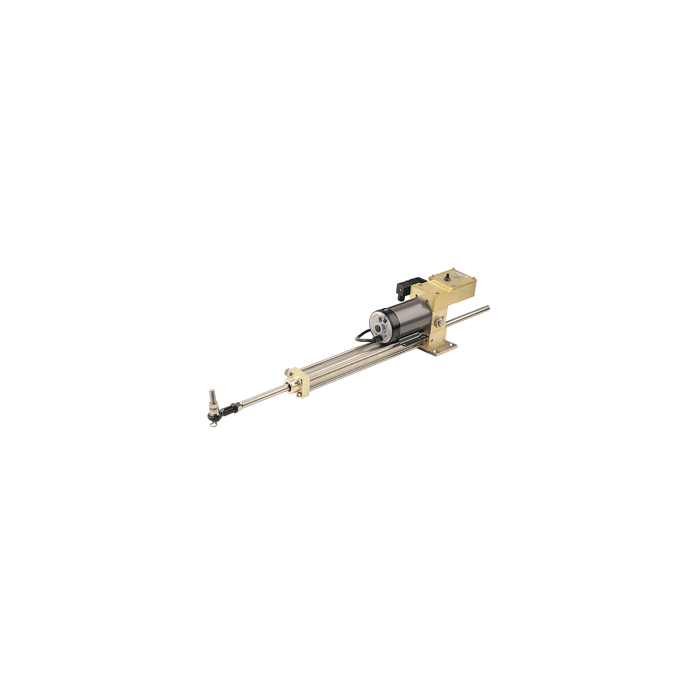

Simrad HLD-2000MK2L Long Linear Drive Unit - 12V
Hydraulic Linear Drive Unit
The HLD2000MK2L is a hydraulic linear drive designed for larger boats with mechanical steering systems. It works in conjunction with a Simrad AC42 autopilot computer as part of an accurate auto-steering system.
HLD2000MK2L Drive Unit Key Features
Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience
Powerful
Outstanding performance even under heavy loads
Direct Rudder Connection
Ensures the safest passage as the linear drive can be used even if the hand steering should fail
By-Pass Valve
Allows you to use the helm with little back drive force when the autopilot is switched off
Simrad Yachting Construction
Brutally strong and built to withstand the environment
Power
Autopilot/Auto-Steering
The HLD2000MK2L is a hydraulic linear drive designed for larger boats with mechanical steering systems. It works in conjunction with a Simrad AC42 autopilot computer as part of an accurate auto-steering system.
HLD2000MK2L Drive Unit Key Features
Highly Accurate
Minor incremental adjustments provide a smooth auto-steering experience
Powerful
Outstanding performance even under heavy loads
Direct Rudder Connection
Ensures the safest passage as the linear drive can be used even if the hand steering should fail
By-Pass Valve
Allows you to use the helm with little back drive force when the autopilot is switched off
Simrad Yachting Construction
Brutally strong and built to withstand the environment
Power
- Power Supply (Supply Voltage): 12V (3-10A)
Autopilot/Auto-Steering
- Max Stroke: 340
- Max Torque [Nm]: 1460
- Peak Thrust: 500kg
- Drive Unit Max Thrust: 500
- Drive Unit Tiller Arm [mm]: 298
- Max Boat Displacement [tons]: 20
| UPC Code | 809190046290 |
|---|---|
| Manufacturer Part Number | 21113360 |
| Manufacturer | Simrad |
