Simrad FC40 Fluxgate Compass 22090187
$470.00
Out of stock
SKU
JMS197440
Simrad FC40 Fluxgate Compass 22090187

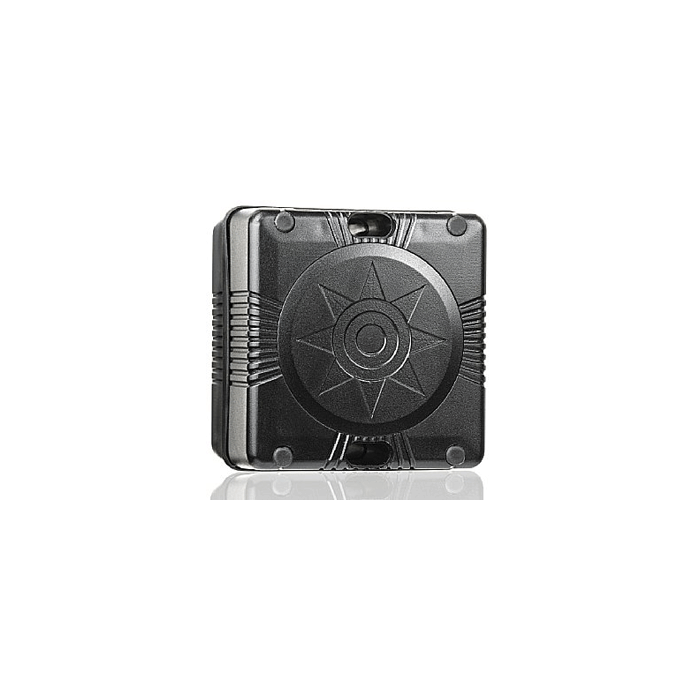

Simrad FC40 Fluxgate Compass
The Simrad FC40 fluxgate compass is designed for connection to the SimNet network. It is equipped with 5,5 m (18 feet) of SimNet cable with connector. The compass transmit the heading even if the autopilot is switched off.
Input from SimNet
Output on SimNet/NMEA2000 Format
The compass is NMEA2000 compatible and outputs PGN 127250.
Specifications:
The Simrad FC40 fluxgate compass is designed for connection to the SimNet network. It is equipped with 5,5 m (18 feet) of SimNet cable with connector. The compass transmit the heading even if the autopilot is switched off.
Input from SimNet
- Heading offset
- Calibration start
- Software upload
Output on SimNet/NMEA2000 Format
The compass is NMEA2000 compatible and outputs PGN 127250.
- Calibrated heading, transmission rate of 20 Hz when selected as heading source on SimNet, otherwise 1 Hz.
- Magnetic field data
- Error messages and status information
Specifications:
- GPS/Navigation:
DGPS: Heading Accuracy +/- 3 degrees after calibration - Autopilot/Autosteering:
Automatic Compass Calibration - Yes - Technical/Environmental:
Housing - Off white ABS
Mouting - Deck or bulkhead
Width - 102.4 mm / 4 in.
Height - 72 mm / 2.8 in.
Length - 106.4 mm / 4.2 in.
Weight - 0.4 kg / 0.88 lbs. - Power:
Power Supply - 8-16V via SimNet vDC
Power Consumptioni - 1,4 W - Other:
Compass Safe Distance - 500 mm / 19.7 in.
List of Specified Standards - Environmental Protection: IP56
Operating Temperature - 0 to +55 degrees
Operating Temperature Stored - -30 to +70 degrees
Mounting Style = NONE | Output Frequency (mHz) = NONE | Output Type = NONE | Backlight = NONE
| UPC Code | 809190331808 |
|---|---|
| Manufacturer Part Number | 22090187 |
| Manufacturer | Simrad |
