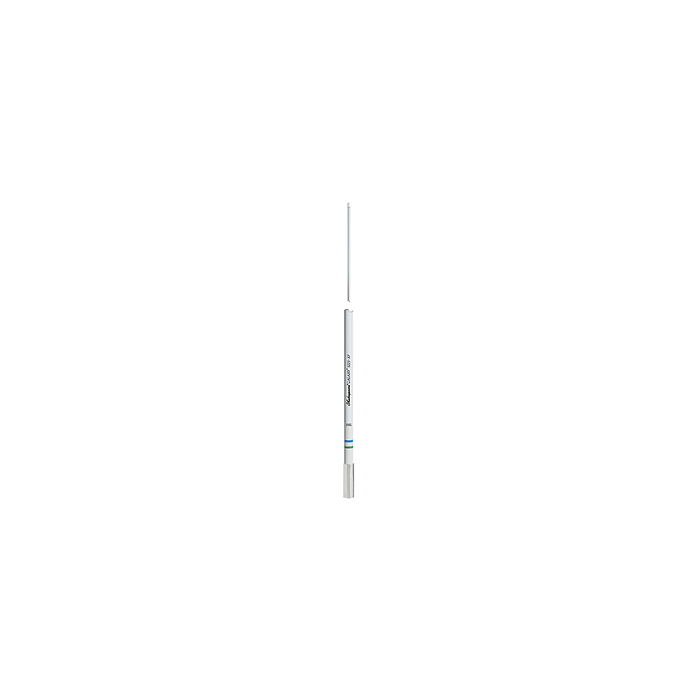

Shakespeare 5225-XP 8' VHF Antenna 5225-XP

Shakespeare Galaxy Style 5225-XP
8" VHF 6dB Gain

Collinear-phased 5/8 wave elements

For the toughest of the tough jobs, Shakespeare introduces the extra edge of silver plated elements on world-renowned, world class, Galaxy marine VHF antennas. The new 5225-XP is a maximum range antenna built in a Shakespeare extra tough fiberglass radome. It"s designed to withstand the wind forces and high speeds when used on hard tops, T-tops, and radar arches. The silver plating adds extended performance for extra reliable communications. The antenna"s legendary Galaxy® high-gloss finish assures that it"s welcome aboard.

• Copper and silver plated brass elements for extraordinary range and efficiency

• Stainless steel ferrule with standard 1"-14 thread

• 20" RG-8/X low-loss cable plus a PL-259 connector

• Suggested mount: Shakespeare 4187

• Shakespeare Limited Warranty: 5 years

• Silver Plated Elements Extended Performance

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	3 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Impedance:	50 ohms
Max Input (Watts):	150 watts
DC Ground:	YES (ohmeter test will read "shorted")
Height (feet):	8
Polarization:	Vertical
