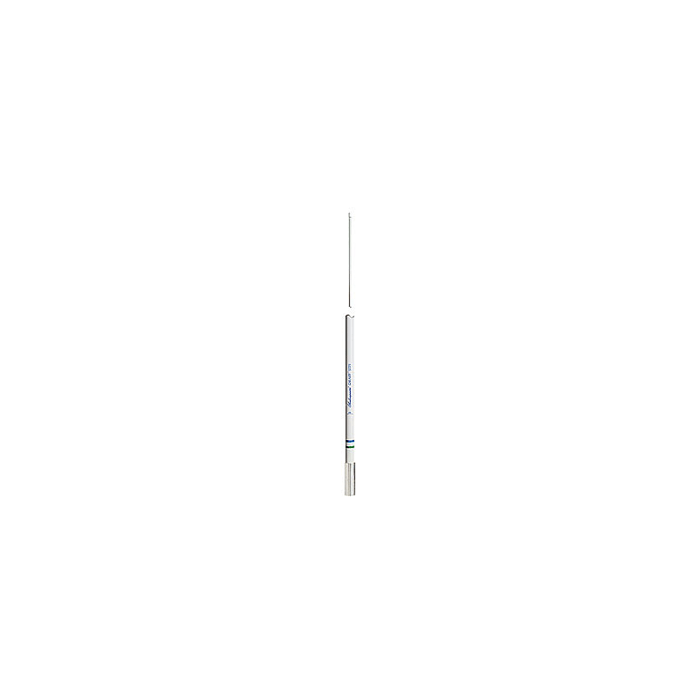

Shakespeare 5225-FLT 8' VHF Antenna 5225FLT

Shakespeare Galaxy® ELIMINATOR™ Style 5225-FLT
8' VHF 6dB Gain

Collinear phased 5/8 wave elements with special filtering to suppress Out-of-Band Interference

If you boat near busy seaports, in harbors or just offshore of major cites and are troubled with annoying squawks and squeals erupting from your VHF radio, the 5225-FLT is for you. Using Shakespeares revolutionary filter technology, the 5225-FLT provides all the performance of the award-winning, flagship Galaxy® 5225-XT, plus it can significantly reduce annoying Out-of-Band and Intermod Interference caused by pagers, land mobile radios and other signals near the marine VHF radio band. And, it does this with virtually no effect on transmit range. The 5225-FLT features the extra tough Galaxy® fiberglass with its high-gloss polyurethane finish. Maximum range and quality in a great looking antenna.

• Brass and copper elements to maximize range and efficiency

• Stainless steel ferrule with standard 1"-14 thread

• Includes 20' RG-8/X cable and a PL-259 connector

• Suggested mount: Shakespeare Style 4187

• Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	3 Mhz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Impedance:	50 ohms
Max Input (Watts):	30 watts
DC Ground:	Yes
Height (feet):	8
Polarization:	Vertical
Filter Loss:	less than 0.25dB

Antenna Band = VHF | Cable Length (Feet) = 20' | Cable Type = RG-8X | Color = White | Construction = Fiberglass | DB Gain (dB) = 6 dB | Ferrule Type = Stainless Steel | Length (Inches) = 8'
