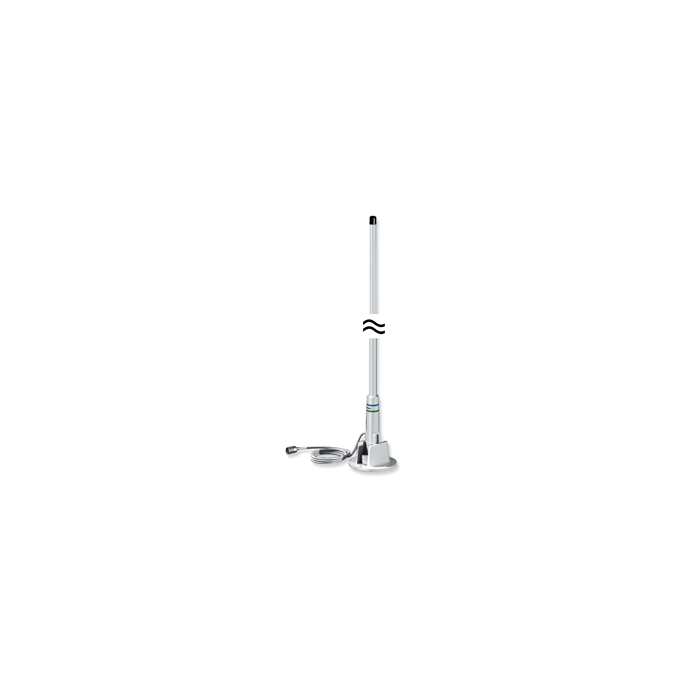

Shakespeare 420 5' VHF Antenna 420

Style 420 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Shakespeare"s most economical 5" antenna package. The 420 is a great, basic 3dB antenna for day-to-day cruising in calm to moderate seas. The antenna has an integral polycarbonate Lift N Lay mount for deck mounting, and comes with a leveling plate and installation hardware. Use a Style 4000 Angle Bracket (sold separately) for side mounting.

• Brass and copper elements

• Includes 15" RG-58 cable and a PL-259 connector

• Integral deck mount

• One section

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 5MHz
SWR:	1.5:1 at 156.8 MHz
Impedance:	(ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	15" RG-58 cable
Height (feet):	5
Polarization:	Vertical
Radiation pattern:	Omni-directional
