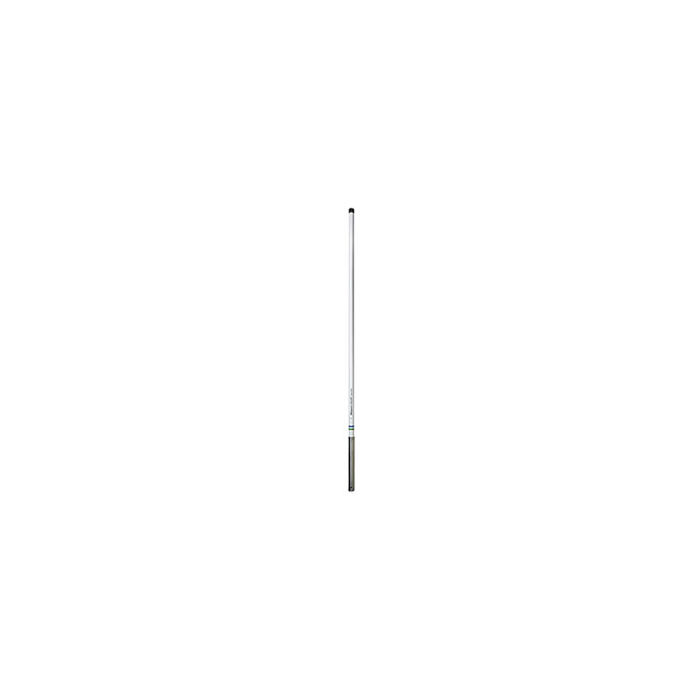

Shakespeare 5400-XP 4' VHF Antenna 5400-XP
$282.95
Out of stock
SKU
JMS175732
SHAKESPEARE VHF 4FT 5400-XP 3DB
Shakespeare Galaxy Style 5400-XP 4" Little Giant™
4" VHF 3dB Gain
Center-fed 1/2 wave coaxial sleeve
Shakespeare has added the extended performance of silver plated elements to this outstanding, 4" workhorse antenna. At home on T-tops and hard-tops, its small size is welcome aloft, where it can deliver maximum range. The extended performance silver plating gives it that extra edge for general purpose communications.
Technical Specifications:
4" VHF 3dB Gain
Center-fed 1/2 wave coaxial sleeve
Shakespeare has added the extended performance of silver plated elements to this outstanding, 4" workhorse antenna. At home on T-tops and hard-tops, its small size is welcome aloft, where it can deliver maximum range. The extended performance silver plating gives it that extra edge for general purpose communications.
- Copper and silver plated brass elements for extraordinary range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20" RG-8/X low-loss cable and a PL-259 connector
- Suggested mount: Shakespeare 4187
- Shakespeare Limited Warranty: 5 years
- Silver Plated Elements Extended Performance
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 5 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Gain: | 3 dB |
| Max Input (Watts): | 50 watts |
| Height (feet): | 4 |
| UPC Code | 719441200312 |
|---|---|
| Manufacturer Part Number | 5400-XP |
| Manufacturer | Shakespeare |
