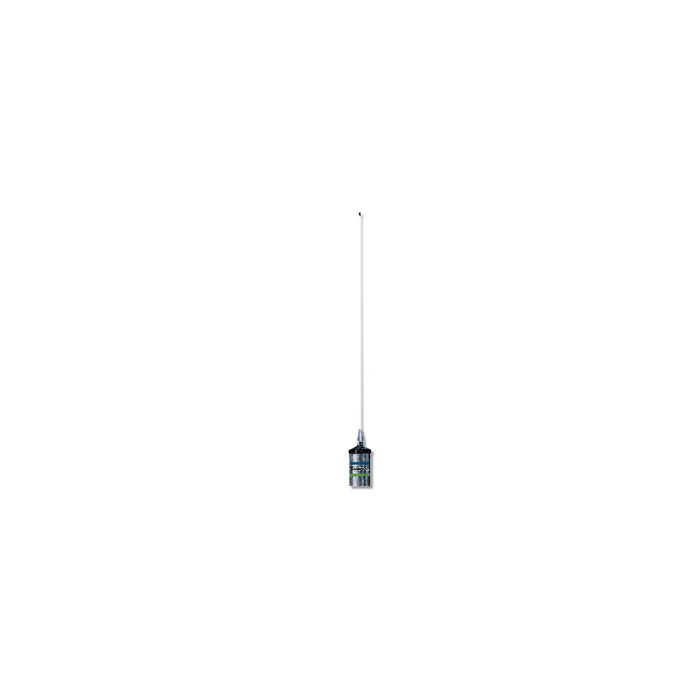

Shakespeare 5240-R 36" VHF Antenna 5240-R
$107.07
Out of stock
SKU
JMS175809
SHAKESPEARE VHF 3FT 5240-R 3DB
Shakespeare Style 5240-R VHF Marine
36" LENGTH 3dB
LOW PROFILE END-FED 1/2-WAVE WITH STANDARD-DUTY WHIP
This style is the same as the Style 5241-R, but with a standard-duty stainless steel whip.
The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important. Comes with a heavy-duty stainless steel whip for extra stability at high speeds. Chrome plated brass canister minimizes de-tuning.
Technical Specifications:
36" LENGTH 3dB
LOW PROFILE END-FED 1/2-WAVE WITH STANDARD-DUTY WHIP
This style is the same as the Style 5241-R, but with a standard-duty stainless steel whip.
The perfect choice for bass boats, center console fishing boats, or any vessel where compact size is most important. Comes with a heavy-duty stainless steel whip for extra stability at high speeds. Chrome plated brass canister minimizes de-tuning.
- Sealed, tin-plated copper wire coil
- Requires mount with center hole for passage of the supplied 15" RG-58 cable.
- PL-259 connector included
- Stainless steel whip (36"), standard duty
- Suggested mount: Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 7 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Radiation pattern: | Omni-directional |
| Gain: | 3 dB |
| Max Input (Watts): | 50 watts |
| DC Ground: | YES |
| Height (feet): | 3 |
| Polarization: | Vertical |
| UPC Code | 719441100445 |
|---|---|
| Manufacturer Part Number | 5240-R |
| Manufacturer | Shakespeare |
