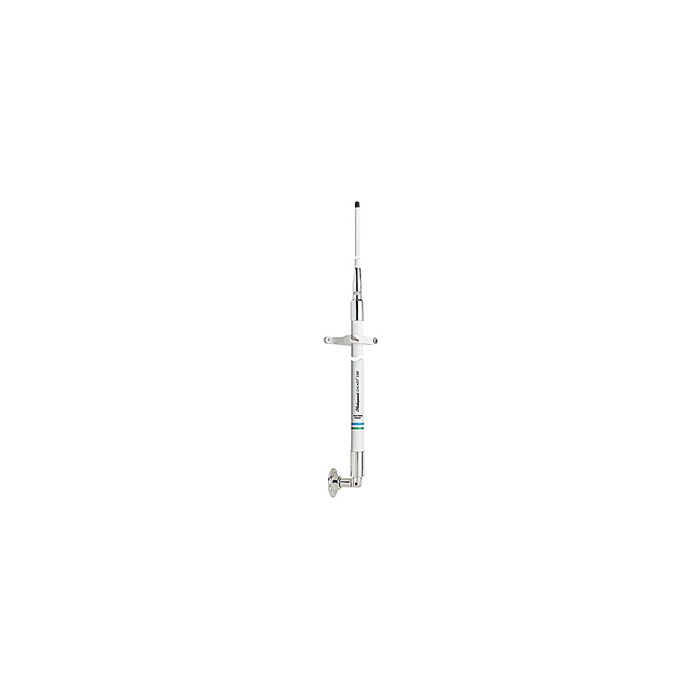

Shakespeare 5318 17' 6" Cellular Antenna 5318
$662.24
Out of stock
SKU
JMS175725
SHAKESPEARE CELL 17.5FT 5318 GALAXY DUAL BAND
Shakespeare Galaxy 5318
17"6" Dual Band Cellular 3dB Gain
800/900 MHz and 1900 MHz Cellular
This large, dual-band cellular antenna brings the electrical performance and aesthetic beauty of our Galaxy® 5018 and 5390 styles to a dual-band cellular configuration. Its longer length gets the signal higher up for greater range. As with all Galaxy® antennas, its hand-soldered and hand-finished with Shakespeares proprietary polyurethane finish that wont fuzz or turn yellow in the sun.
Technical Specifications:
17"6" Dual Band Cellular 3dB Gain
800/900 MHz and 1900 MHz Cellular
This large, dual-band cellular antenna brings the electrical performance and aesthetic beauty of our Galaxy® 5018 and 5390 styles to a dual-band cellular configuration. Its longer length gets the signal higher up for greater range. As with all Galaxy® antennas, its hand-soldered and hand-finished with Shakespeares proprietary polyurethane finish that wont fuzz or turn yellow in the sun.
- Brass and copper elements to maximize range
- Stainless steel ferrule with standard 1"-14 thread
- Includes 25" of Shakespeare exclusive Lo-Max® low-loss cable and a "TNC" connector
- Suggested Mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
- Two sections: Base 105", Tip 105" - UPS shippable
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | Dual Band 800-890 MHz and 1800-1900 MHz |
| Bandwidth: | 96 MHz within 2.0:1 VSWR (analog band) |
| 140 MHz within 2.0:1 VSWR at (digital band) | |
| SWR: | nominally less than 1.5:1 at 852.65 MHz; |
| nominally less than 1.5:1 at 1918.7 MHz | |
| Gain: | 3 dB |
| DC Grounding | NO |
| Height (feet): | 17.5 |
| UPC Code | 719441900434 |
|---|---|
| Manufacturer Part Number | 5318 |
| Manufacturer | Shakespeare |
