Shakespeare 5207 8' CB Antenna 5207
$194.95
Out of stock
SKU
JMS175679
SHAKESPEARE CB 8FT 5207

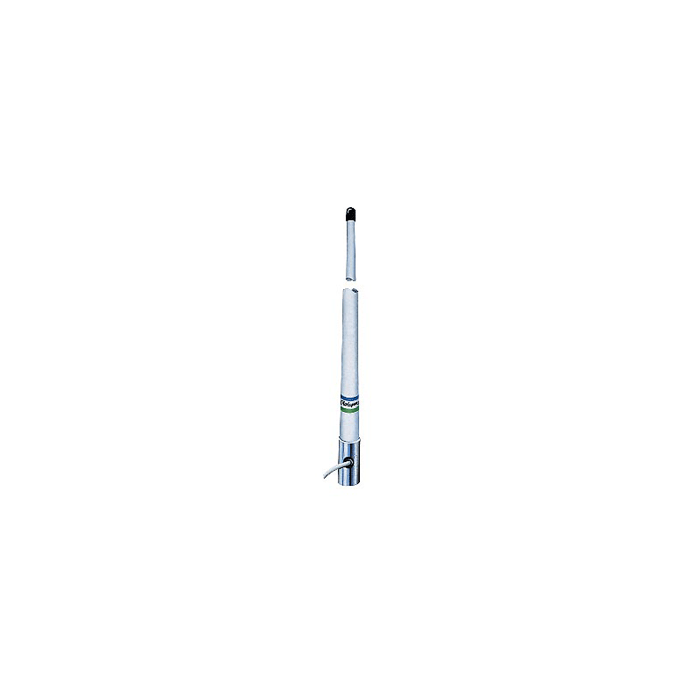

Shakespeare Style 5207 SEA MATE™ CB Marine
8' LENGTH, Unity Gain
CONTINUOUS-LOADED, END-FED 1/2-WAVE CB ANTENNA
This outstanding antenna can be tuned for minimum VSWR and optimum performance. A VSWR meter (sold separately) is required for the tuning process. Needs only 3/8" hole for passage of the coax.
Technical Specifications:
8' LENGTH, Unity Gain
CONTINUOUS-LOADED, END-FED 1/2-WAVE CB ANTENNA
This outstanding antenna can be tuned for minimum VSWR and optimum performance. A VSWR meter (sold separately) is required for the tuning process. Needs only 3/8" hole for passage of the coax.
- Chrome-plated brass ferrule with 1"-14 thread
- Includes 15' RG-58 cable, which can be cut to length, and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Style 410-R Mounting Kit and a Style 4008 Extension Mast to form a 16' antenna system
- One section
- Twin to: Styles 5202, 5302, and 5206-C
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 27 MHz CB Marine Band |
| Bandwidth: | 440 KHz |
| SWR: | 1.5:1 at Channel 19 |
| Impedance: | (Ohms) 50 |
| Gain: | Unity |
| Max Input (Watts): | 25 |
| DC Ground: | YES |
| Termination: | 15' cable |
| Height (feet): | 8 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-Directional |
| UPC Code | 719441800079 |
|---|---|
| Manufacturer Part Number | 5207 |
| Manufacturer | Shakespeare |
