Shakespeare 5205 8' CB Antenna 5205
$157.54
Out of stock
SKU
JMS175678
SHAKESPEARE CB 8FT 5205

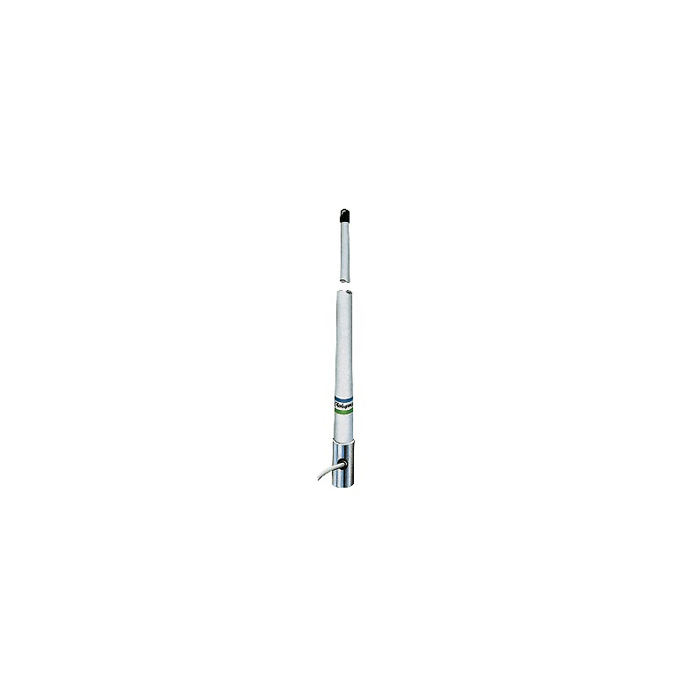

Shakespeare Style 5205 SALTY MATE™ CB Marine
8' LENGTH, Unity Gain
CONTINUOUS-LOAD, END-FED 1/2-WAVE CB ANTENNA
The Style 5205 antenna is the perfect twin to Shakespeare Styles 5202, 5302, and 5206-C VHF antennas. The pair makes an exceptionally reliable communications system. Coil is permanently sealed in Shakespeare's white fiberglass.
Technical Specifications:
8' LENGTH, Unity Gain
CONTINUOUS-LOAD, END-FED 1/2-WAVE CB ANTENNA
The Style 5205 antenna is the perfect twin to Shakespeare Styles 5202, 5302, and 5206-C VHF antennas. The pair makes an exceptionally reliable communications system. Coil is permanently sealed in Shakespeare's white fiberglass.
- Chrome-plated brass ferrule with 1"-14 thread
- Includes 7' cable and PL-259 connector which cannot be cut or altered but can be lengthened with suitable connectors and 50-ohm extension coax (sold separately)
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Twin to: Styles 5202, 5302, and 5206-C
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 27 MHz CB Marine Band |
| Bandwidth: | 440 KHz |
| SWR: | 1.5:1 at Channel 19 |
| Impedance: | (Ohms) 50 |
| Gain: | Unity |
| Max Input (Watts): | 25 |
| DC Ground: | YES |
| Termination: | 7' cable |
| Height (feet): | 8 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-Directional |
| UPC Code | 719441800062 |
|---|---|
| Manufacturer Part Number | 5205 |
| Manufacturer | Shakespeare |
