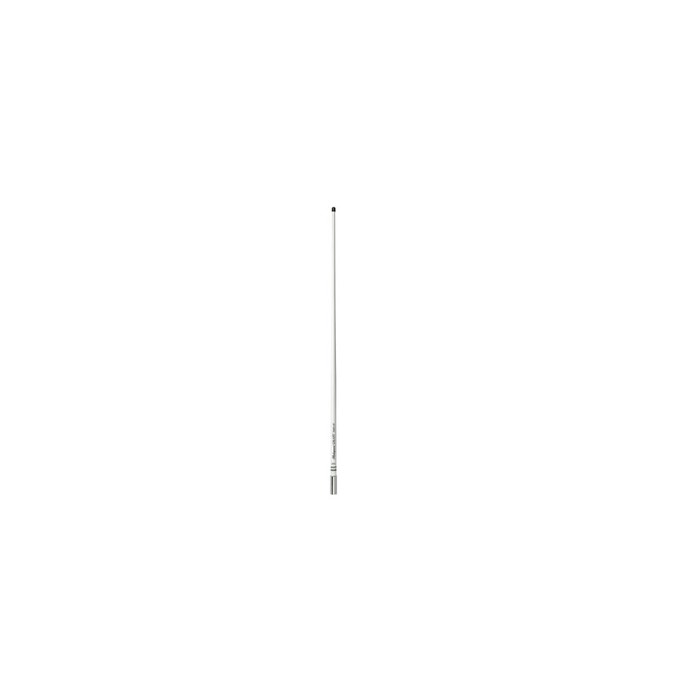

Shakespeare 5400-XTM 4' Galaxy VHF Antenna

Shakespeare Shakespeare Galaxy Style 5400-XTM LITTLE GIANT™
4' VHF 3dB Gain

A heavy-duty, 4' VHF antenna designed especially for mast mounting in land-based or ship station application where a larger antenna is not feasible.

• Brass and copper elements for maximum range

• Stainless steel mounting sleeve

• SO-239 connector in the base of the mounting sleeve

• U-bolts included for mast mounting

• One section

Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	5 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Gain:	3 dB
Max Input (Watts):	50 watts
Height (feet):	4

Antenna Band = VHF | Cable Length (Feet) = NONE | Cable Type = NONE | Color = White | Construction = Fiberglass | DB Gain (dB) = 3 dB | Ferrule Type = Stainless Steel | Length (Inches) = 4'

Category: Communication | Antennas

Manufacturer Part Number: 5400-XTM
