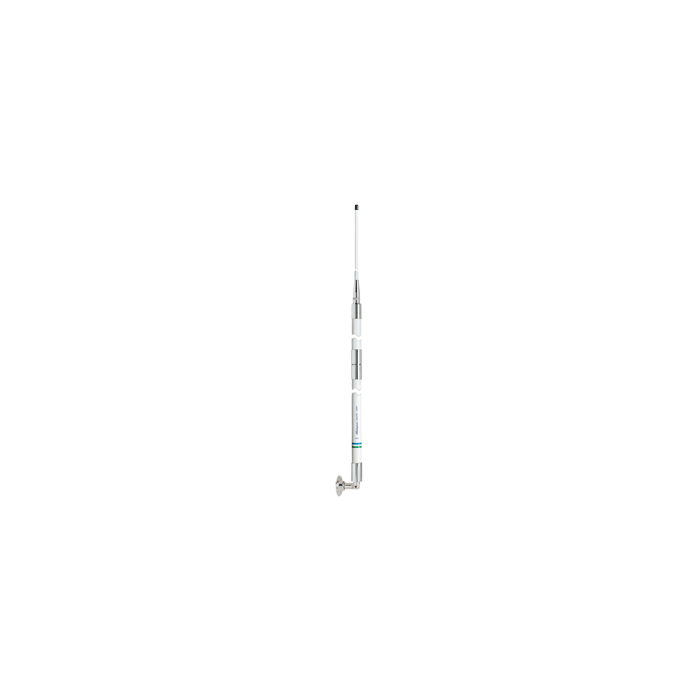

Shakespeare 5309-R 23' Galaxy VHF Antenna 5309-R
$899.99
Out of stock
SKU
JMS175813
SHAKESPEARE VHF 23FT 5309-R GALAXY 9DB NO UPS TRUCK ONLY
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS
Shakespeare Galaxy 5309-R
23" VHF 9dB Gain
Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation
This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.
Technical Specifications:
Shakespeare Galaxy 5309-R
23" VHF 9dB Gain
Phased 1/2 wave elements in collinear array with a band spread matching sleeve and a choking stub to suppress cable radiation
This design invokes all the antenna engineers tricks to produce the clearest possible transmission and reception over the longest range.
- Brass and copper elements
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20" RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit (pictured mount not included)
- Two sections: Base 172", Tip 105"
- Twin to: Galaxy Style 5310-A HF/SSB
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 5 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Gain: | 9 dB |
| Max Input (Watts): | 150 watts |
| DC Ground: | NO |
| Height (feet): | 23" |
| Polarization: | Vertical |
| UPC Code | 719441200121 |
|---|---|
| Manufacturer Part Number | 5309-R |
| Manufacturer | Shakespeare |
