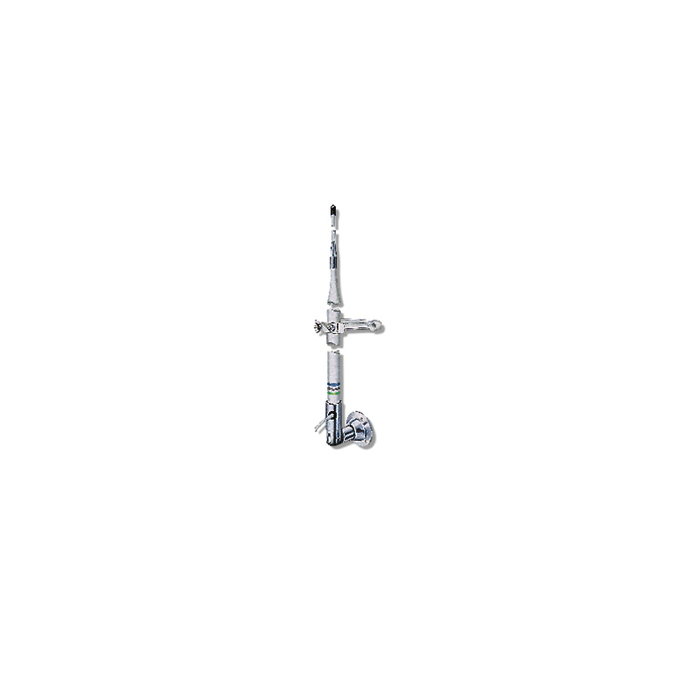

Shakespeare 5208-3 23' VHF Antenna 5208-3
$598.95
Out of stock
SKU
JMS175722
SHAKESPEARE VHF 23FT 5208-3 9DB 3PC
Shakespeare Style 5208-3 VHF Marine
23" LENGTH, 9dB
PHASED 1/2-WAVE ELEMENTS IN A COLLINEAR ARRAY WITH CHOKING STUB TO SUPPRESS CABLE RADIATION AND A BAND SPREAD MATCHING SLEEVE
The Style 5208-3 puts all the quality and performance of Shakespeares Ocean Twin 5208 into a three-section configuration. The Style 5208-3 is UPS shippable. The antenna delivers performance and then some. Its nine phased 1/2-wave element, 23-foot design means long distance communications in heavy seas... no problem!
Technical Specifications:
23" LENGTH, 9dB
PHASED 1/2-WAVE ELEMENTS IN A COLLINEAR ARRAY WITH CHOKING STUB TO SUPPRESS CABLE RADIATION AND A BAND SPREAD MATCHING SLEEVE
The Style 5208-3 puts all the quality and performance of Shakespeares Ocean Twin 5208 into a three-section configuration. The Style 5208-3 is UPS shippable. The antenna delivers performance and then some. Its nine phased 1/2-wave element, 23-foot design means long distance communications in heavy seas... no problem!
- Brass and copper elements
- Chrome-plated brass ferrules
- Includes 20" RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 410-R Mounting Kit for deck or side mounting
- Three sections: Base 75"; Middle 100"; Tip 105"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | 5 MHz |
| SWR: | 1.5:1 @ 156.8 MHz |
| Impedance: | (ohms): 50 |
| Gain: | 9 dB |
| Max Input (Watts): | 50 |
| DC Ground: | NO |
| Termination: | 15" RG-58 cable |
| Height (feet): | 23 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
| UPC Code | 719441100643 |
|---|---|
| Manufacturer Part Number | 5208-3 |
| Manufacturer | Shakespeare |
