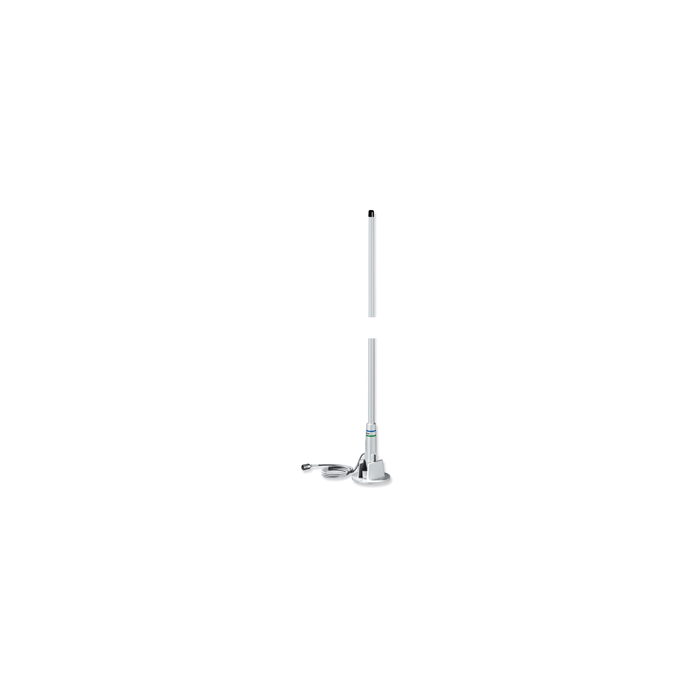

Shakespeare 4050-B 3' CB Antenna 4050-B
$143.95
Out of stock
SKU
JMS175676
SHAKESPEARE CB 3FT 4050-B
Shakespeare Style 4050-B LITTLE GIANT™ CB Marine
3' LENGTH, Unity Gain
CONTINUOUS-LOAD, END-FED 1/2-WAVE CB ANTENNA
Great for bass boats and other boats where fishing over a 3' antenna is more desirable than greater range. Coil is permanently sealed in Shakespeare white fiberglass.
Technical Specifications:
3' LENGTH, Unity Gain
CONTINUOUS-LOAD, END-FED 1/2-WAVE CB ANTENNA
Great for bass boats and other boats where fishing over a 3' antenna is more desirable than greater range. Coil is permanently sealed in Shakespeare white fiberglass.
- Polycarbonate ferrule
- Includes 7' cable and PL-259 connector which cannot be cut or altered but can be lengthened with suitable connectors and extension coax (sold separately)
- Mount: Integral polycarbonate Lift-n-Lay mount with installation hardware included. Use Shakespeare Style 4000 Right Angle Bracket (sold separately) for side mounting.
- One section
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 27 MHz CB Marine Band |
| Bandwidth: | 440 KHz |
| SWR: | 2.0:1 at Channel 19 |
| Impedance: | (Ohms) 50 |
| Gain: | Unity |
| Max Input (Watts): | 25 |
| DC Ground: | YES |
| Termination: | 7' cable |
| Height (feet): | 3 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-Directional |
| UPC Code | 719441800031 |
|---|---|
| Manufacturer Part Number | 4050-B |
| Manufacturer | Shakespeare |
