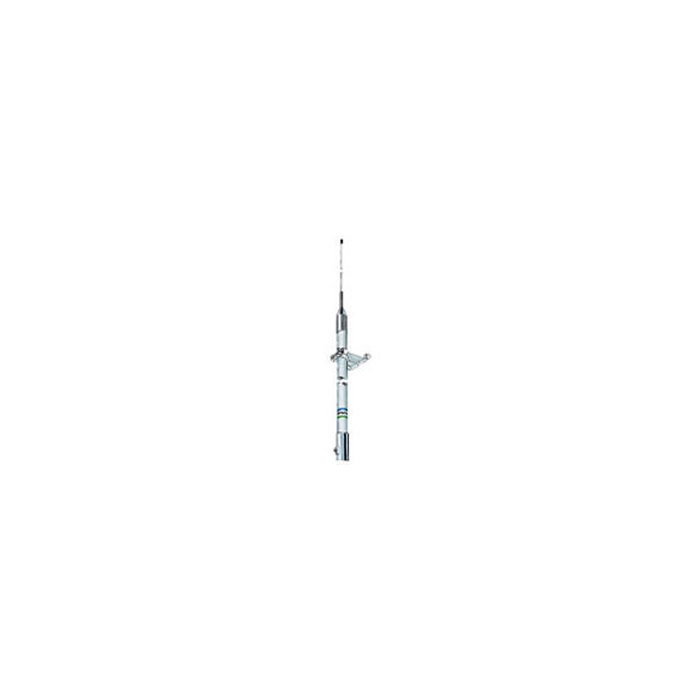

Shakespeare 176-1 1' CB Antenna 176-1
$306.95
Out of stock
SKU
JMS175675
SHAKESPEARE CB 18FT 176-1 TRUCK FRT ONLY NO UPS OR DHL
Shakespeare Style 176-1 MARINE BIG STICK™ CB Marine
18' LENGTH, 7.65 dBi
1/2-WAVE COAXIAL CB ANTENNA
For work boat and large yacht installation, the Style 176-1 provides maximum performance and durability for long distance communication.
Technical Specifications:
18' LENGTH, 7.65 dBi
1/2-WAVE COAXIAL CB ANTENNA
For work boat and large yacht installation, the Style 176-1 provides maximum performance and durability for long distance communication.
- Chrome-plated brass ferrules with 1"-14 thread
- SO-239 connector on the side of the ferrule
- Suggested mount: Shakespeare Style 409-R or Style 410-R Mounting Kit
- Two sections: Base 120"; Tip 96"
- Twin to: Styles 5202, 5302, and 5206-C
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | 27 MHz CB Marine band |
| Bandwidth: | 440 KHz |
| SWR: | 1.5:1 or less at Channel 19 |
| Impedance: | (Ohms): 50 |
| Gain: | 7.65 dB |
| Max Input (Watts): | 300 |
| DC Ground: | YES |
| Termination: | SO-239 connector |
| Height (feet): | 18 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
| UPC Code | 719441800017 |
|---|---|
| Manufacturer Part Number | 176-1 |
| Manufacturer | Shakespeare |
