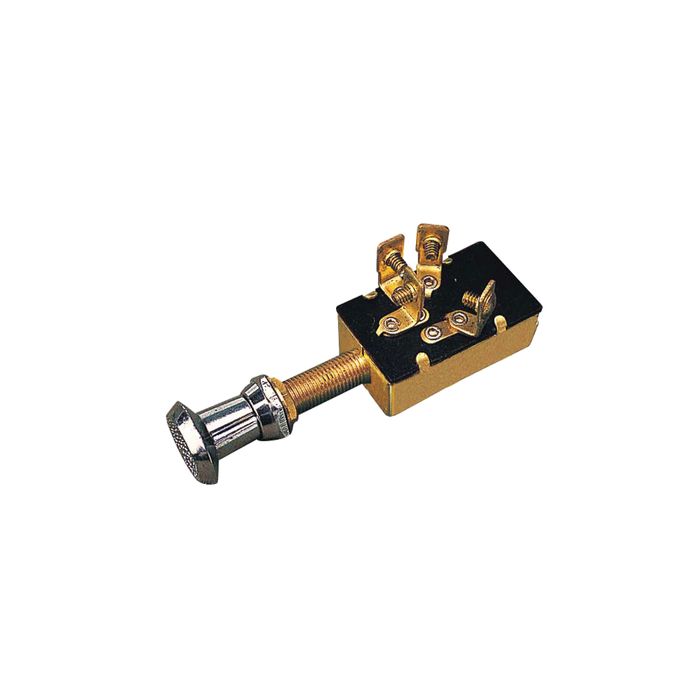

Seadog Push Pull Switch 3 Pos. SDG-4204005

Sea-Dog Push Pull Switch 3 Pos 2 Circ. SDG-4204005

One circuit, normally off, three positions: Off/On/On. When pulled to the first position, the first circuit is activated . At the second position, the second circuit is activated. Allows use of 2 circuits, such as running lights and anchor lights to be run independently with one switch. Stamped brass. Mounting stem 3/8" dis. x 1" long. 15 amps @ 12VDC. POP display of 20 switches.

Position: Off/On/On
Type: SPDT
Terminals: 4 Screw

SKU: SDG-4204005
Category: Electrical > Push-Pull Switches
