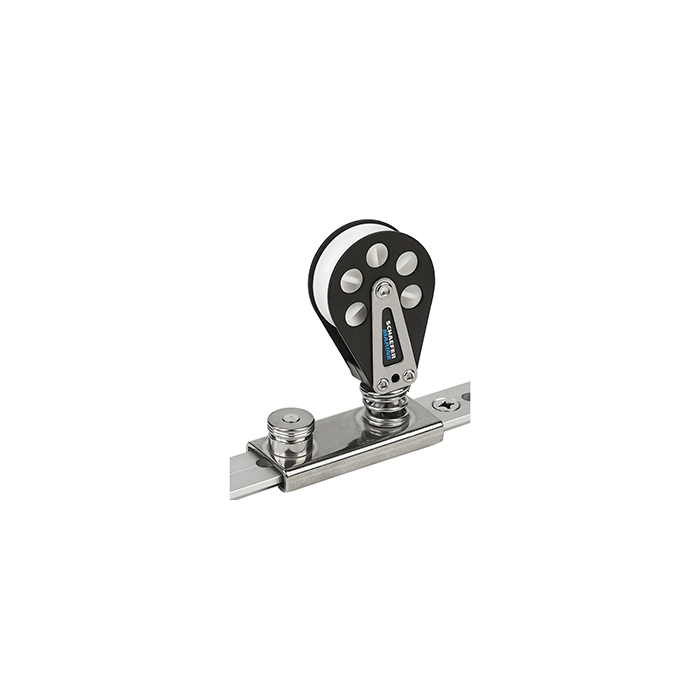

Schaefer Spring Loaded/Lined Slide/Aluminum f/1-1/4" T-Track 704-92

Spring Loaded/Lined Slide/Aluminum for 1-1/4" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length 33' (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Sheave Diameter 2-3/8" (60 mm)
• Max Line 1/2" (12 mm)
• Length 4" (102 mm)
• Width 1-9/16" (39 mm)
• Height 4-15/16" (126 mm)
• Bearing Height 2-3/8" (67 mm)
• SWL 2250 lbs. (1020 kg)
• Weight12 oz. (340 g)
