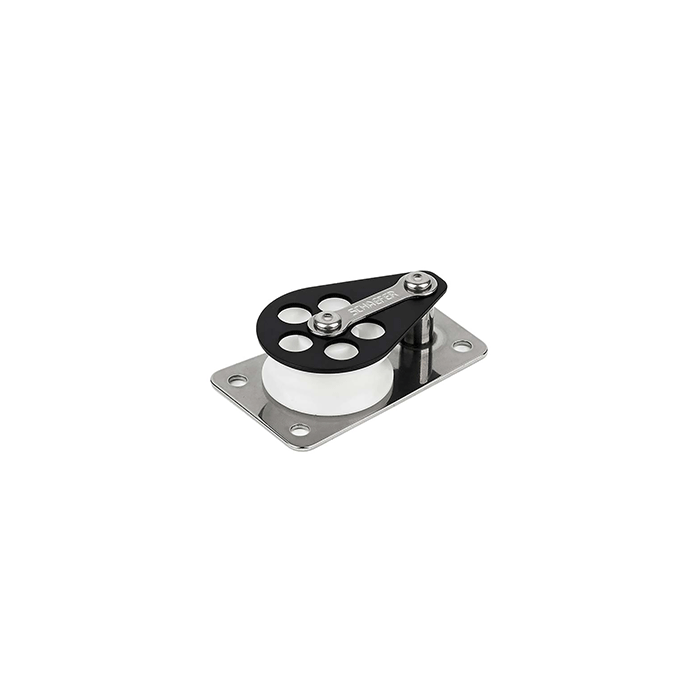

Schaefer Series 3 Flat Base/Alum Cheek/Delrin Sheave 303-09

Series 3 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.

Specifications:

• Sheave Dia. 1-7/16" (37 mm)
• Max Line 7/16" (11 m)
• Length 2-7/8" (73 mm)
• Width 1-3/4" (44 mm)
• Height 3/4" (19 mm)
• Fasteners (4) #10- RH (5 mm)
• C/C 2-3/8" (60 mm)
• SWL 1000 lbs. (450 kg)
• Weight Alum. 2.5 oz. (71 g)
