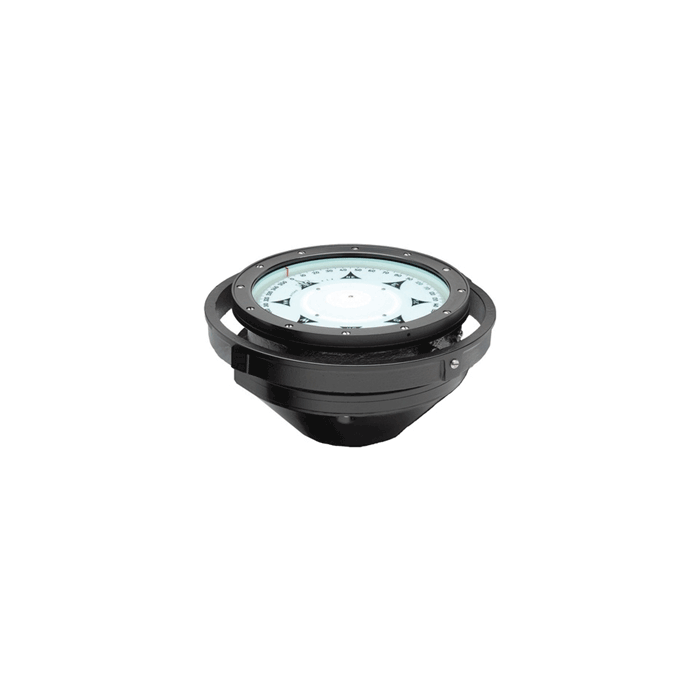

Ritchie Navy Standard Binnacle Mount Compass NS-7.5.BIN

NS-7.5-BIN - Navy Standard Binnacle Mount Compass

Navy Standard compasses are professional compasses intended for coastal or worldwide naviagtion. The NS-7.5 BIN is for installation into ship's binnacle. Comes with 12V, 24V/32V, and 110V lights included. The compass dial system features a 7 +" (192mm) dial with one degree graduations and cardinal and inner cardinal markings. The dial float chamber removes nearly all the weight from the pivot and jewel. The bezel is machined to accommodate Navy Standard azimuth or bearing circles. The compass meets or exceeds Solas ISO Class A compass requirements.

Features:

• Without mounting yoke for installation in ship's binnacle

• Dial 7.5" (192mm)

• 1 degree increments with cardinal and inner cardinal markings

• Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

• Bezel machined to accommodate 7.5" Navy standard azimuth circle or bearing circle

• Meets or exceeds Solas ISO Class A compass requirements

• Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

• 12, 24, 32 VDC and 110 VAC lighting included

• 100% Repairable

• Exclusive 5-Year Ritchie Warranty

• Width 12 1/2"

• Depth 11 3/4"

• Height 9 3/8"
