Raymarine X-10 Corepack - Use w/ Type 1 Drive Unit E12198

Engineered for both power and sail vessels with 12 or 24 Volt DC electrical systems, the SmartPilot X-10 corepack is the "brains" of your Raymarine modular pilot system. Engineered for the demanding marine environment the SmartPilot X-10 course computer can drive any Raymarine Type 1 hydraulic, linear, or rotary drive system.

The SmartPilot X-10 corepack features an integrated rate-gyro processor as standard equipment. The rate gyro, combined with Raymarine"s exclusive AST (Advanced Steering Technology) software algorithms ensure razor-sharp course keeping under any sea conditions. The SmartPilot X-10 also offers the convenience of rudder reference-less operation as well as data connections for SeaTalk, SeaTalkNG, NMEA 0183 and NMEA 2000 giving the SmartPilot X-10 unprecedented connectivity.

Using SeaTalkNG networking, connect your SmartPilot X-10 to the ST70 Color Autopilot Controller and unlock exclusive features including programmable fishing patterns. SmartPilot X-10/ST70 combination allows you the freedom to work the bait while it smoothly handles the boat. Programmable patterns include circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.

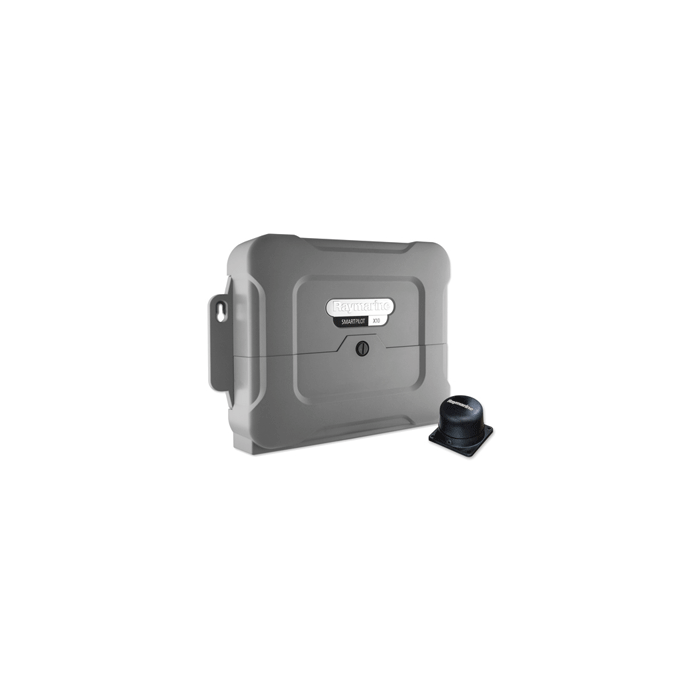

The SmartPilot X-10 core pack includes course computer, rotary rudder reference transducer and fluxgate compass sensor. To complete your autopilot system you will need to add a Raymarine Type 1 autopilot drive and a compatible SeaTalk or SeaTalkNG autopilot controller.
