Raymarine p70R Type 1 Autopilot Package f/Hydraulic Steered Powerboats T70079

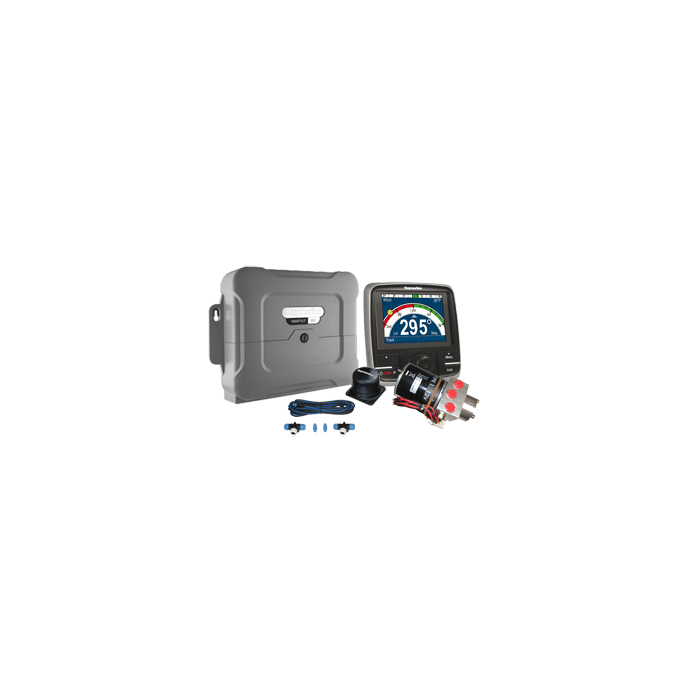

Raymarine p70R, SPX-10, Type 1 Hydraulic Pump Autopilot System
Part #: T70079

Consisting of:

E22167 P70R Autopilot Control Head
E12198 X-10 Corepack
M81120 Type 1 Hydraulic Pump 12v
T16012 Autopilot Backbone Kit


All-in-one X-10 autopilot system for hydraulically steered powerboats. Packaged pilot system includes a p70R Autopilot control head, X-10 course computer, fluxgate compass, and Type 1 hydraulic drive.

Fits vessels with hydraulic steering cylinder capacities between 4.9" - 14" RAM capacity.

Features p70R

• New LightHouse user interface is simple and quick to use.

• Wide 160 viewing angles

• Start up wizard helps you configure the pilot quickly and easily.

• Anti-reflective coating for improved visibility in bright sunlight

• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured
  brightness

• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane;
  Power Steer and Jog Steer

• Simple system and group dimming/illumination

• Support for multiple data sources

• SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging
  required)

X-10 Corepack

Engineered for both power and sail vessels with 12 or 24 Volt DC electrical systems, the SmartPilot X-10 corepack is the "brains" of your Raymarine modular pilot system. Engineered for the demanding marine environment the SmartPilot X-10 course computer can drive any Raymarine Type 1 hydraulic, linear, or rotary drive system.

The SmartPilot X-10 corepack features an integrated rate-gyro processor as standard equipment. The rate gyro, combined with Raymarine's exclusive AST (Advanced Steering Technology) software algorithms ensure razor-sharp course keeping under any sea conditions. The SmartPilot X-10 also offers the convenience of rudder reference-less operation as well as data connections for SeaTalk, SeaTalkNG, NMEA 0183 and NMEA 2000 giving the SmartPilot X-10 unprecedented connectivity.

The SmartPilot X-10 core pack includes course computer and fluxgate compass sensor.

Type 1 Pump

Reversing hydraulic pump for use with steering systems equipped with 4.9-14 cubic inch (80cc - 230cc) hydraulic steering rams.

Included also is the Autopilot Backbone cable kit T16012, consisting of A06028 - STNG T-piece connector (2), A06031 - Backbone terminators (2), A06036 - Backbone cable 5M

Boat Length - Max (Feet) = NONE | Capacity - Max Ram (CU) = 4.9-14" | Drive Type = Hydraulic | Feedback Type = NONE | Pilot Type = Inboard | Remote Capable = Yes | Turn Patterns = NONE | Vessel Displacement - Max (Pounds) = NONE
