Raymarine EV-200 Sport Pilot

Raymarine EV-200 Sport Evolution Autopilot

Features:

• A complete autopilot-in-a-box

• Evolution Ai for superior performance

• No calibration required

• Includes Wheel Mount Sport Drive

• SeaTalk^ng Network Capable

• ACU-200 auxiliary power to SeaTalk^ng network

• Includes p70R Autopilot Controller

Hydraulic Steering = Max. 7,000lbs
Mechanical Steering = Max. 4,400lbs

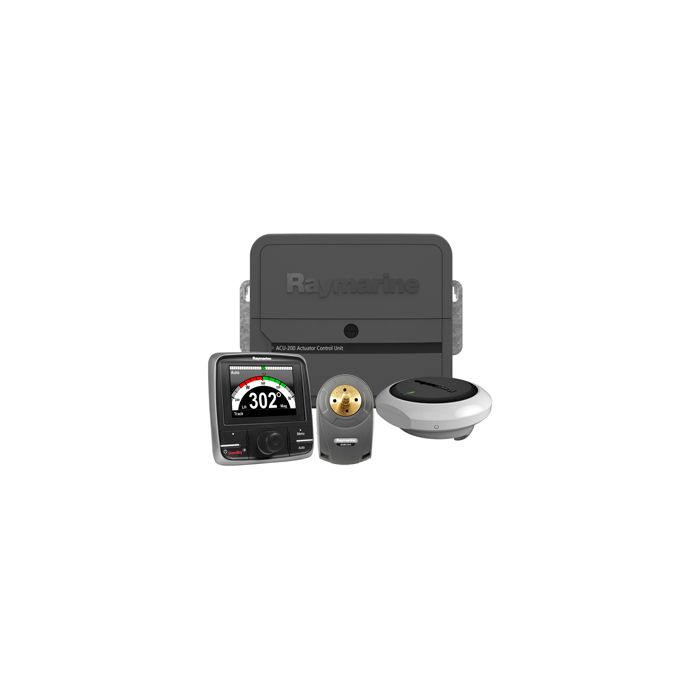

Includes:

• EV-1 Sensor Core

• p70R Autopilot Control Head

• ACU-200 Actuator Control Unit (Includes the M81105 Rotary Rudder
  Reference)

• Evolution Cabling Kit

• Sport Drive R12221

The EV Sensor Core
At the center of every Evolution system is the intelligent EV sensor core, a
9-axis sensor that monitors vessel motion in all three dimensions. The
innovative EV sensor core combines advanced solid-state sensors with the
Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully
sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot
systems. SeaTalk^ng networking enables a single cable
connection for power and data to the Evolution ACU (actuator control unit)
and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the
  autopilot to evolve instantly as sea conditions and vessel dynamics change

• Flexible installation options

• Mount above or below deck

• Simple SeaTalk^ng connectivity to the control head and
  ACU

• Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions

• Fast and reliable heading data for MARPA, radar overlay, and heading
  modes on Raymarine multifunction displays

p70R Autopilot Control Head
The p70R has a convenient rotary control knob and support for multiple
autopilot modes including Auto, standby, trolling patterns, and track mode
from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use

• Wide 160° viewing angles

• Start up wizard helps you configure the pilot quickly and easily

• Anti-reflective coating for improved visibility in bright sunlight

• Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured
  brightness

• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane;
  Power Steer and Jog Steer

• Simple system and group dimming/illumination

• Support for multiple data sources

• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no
  bridging required)

ACU-200 Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive
power and also provides power to the SeaTalk^ng bus. Choose
the ACU that fits your steering system type.

Sport Drive
Suitable for use with fixed and tilt helms, the drive unit fits over your existing steering wheel shaft. Fit your steering wheel directly over the drive for a compact and effective installation.

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)

• 1 x SeaTalk^ngg Backbone Cable (5m)

• 1 x SeaTalk^ng Spur Cable (0.4m)

• 1 x SeaTalk^ng 5-way Connector Block

• 2 x SeaTalk^ng T-piece Connector

• 2 x SeaTalk^ng Terminator

Boat Length - Max (Feet) = NONE | Capacity - Max Ram (CU) = NONE | Drive Type = NONE | Feedback Type = NONE | Pilot Type = NONE | Remote Capable = Yes | Turn Patterns = NONE | Vessel Displacement - Max (Pounds) = NONE

Category: Marine Navigation & Equipment | Autopilots

Manufacturer Part Number: T70159
