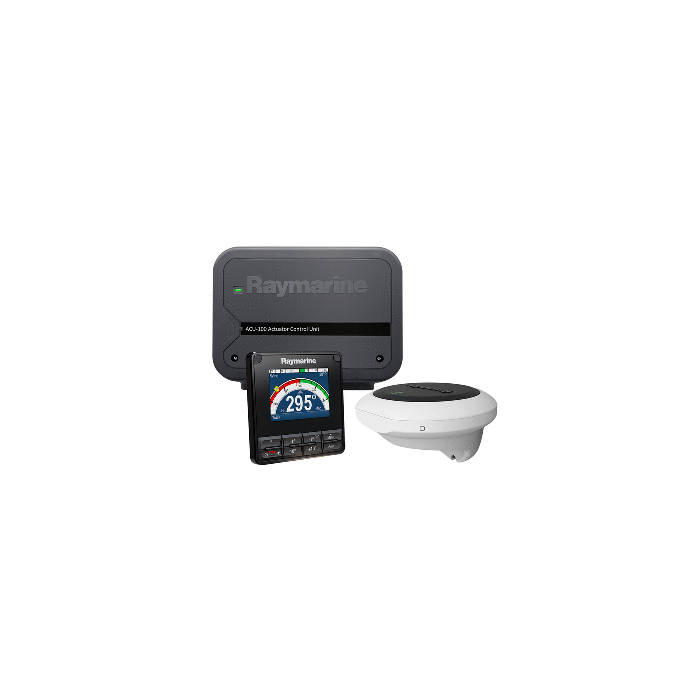

RAYMARINE EV-100 WHEEL PILOT WITH P70S CONTROLLER

EV-100 Wheel Pilot with p70s Controller Corepack Only - No Drive Unit

Race, cruise or fish - Evolution will take command

No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R & D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-100

With the ACU-100 Raymarine brings the exceptional performance of Evolution Autopilots to sport boats, runabouts and smaller cruising yachts.

Specifically designed to complement Raymarine’s unique wheel-drive and tiller-drive applications, the ACU-100 provides a powerful and secure interface between steering systems and the revolutionary EV-1 course computer and 9-axis sensor.

As a true world-first innovation, the ACU-100 is fully sealed so may be mounted above decks on boats where space is limited.

p70s

Features:

• 3.5” super bright oversized LCD for maximum visibility
• All weather, low power, optically bonded display technology delivers brighter colours, sharper contrast, and a wide viewing angle
• Button or rotary control options for sail and power applications
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Display the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
• Simple system and group dimming / illumination
• Easy to use Lighthouse user interface with sculpted
