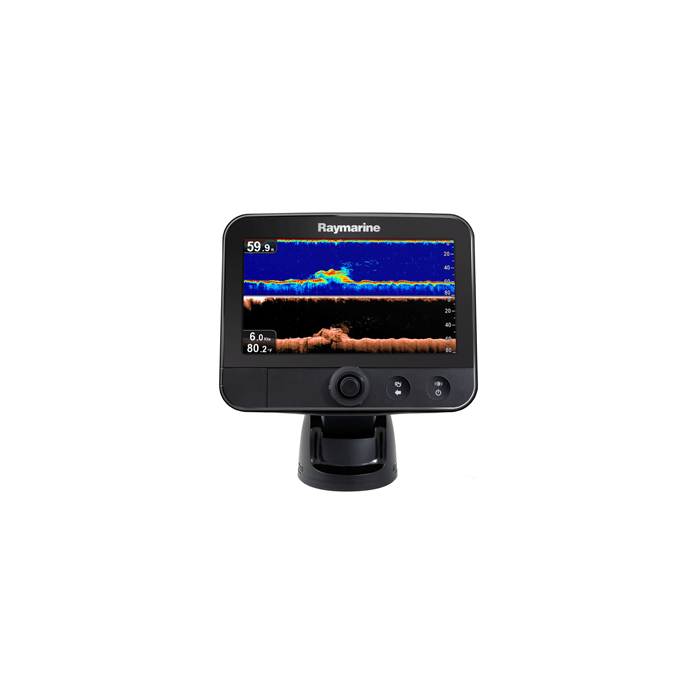

Raymarine Dragonfly7 GPS/Fishfinder Combo w/Transom Mount Transducer - No Charts E70231

Raymarine Dragonfly7 GPS/Fishfinder Combo w/Transom Mount Transducer - No Charts

Dragonfly7 GPS/Fishfinder Combo with Transom Mount Transducer - No Charts

With Raymarine's affordable, high-performance Dragonfly series of combination sonar/GPS, the power and crisp detail of ClearPulse® CHIRP sonar is now within the reach of the inland and coastal salt water angler. Using Raymarine's exclusive ClearPulse® technology and a true 2-channel transducer, users see dramatically revealing images of fish and the structures where they hide -- in both DownVision and conventional sonar simultaneously.

Dragonfly's intuitive display interface and simple Unicontroller is easy to use right out of the box. Built-in 50-channel GPS also simplifies installation and its fast-acquisition position technology ensures added navigation confidence (with up to 3,000 waypoints, 150 routes and 15 tracks of up to 10,000 trackpoints).

The Raymarine Dragonfly combo sonar/GPS units feature a large 7" ultra-bright 1600 nit display for maximum visibility even in direct sun. For added security, use the quick-release swivel bracket with an available Thule lock core.

Features:

• Large 7" 640x480 LCD is easy to read even in the brightest sunlight

• Raymarine's exclusive ClearPulse® CHIRP technology delivers unrivaled resolution for structure and fish detection

• Powerful two channel digital sonar engine simultaneously displays Down Vision and conventional sonar images

• True dual beam transom-mount transducer accurately reveals fish location (25 degree wide beam) and extremely detailed views of structure (1.4 degree narrow fan beam), plus a high precision temperature sensor

• High resolution Down Vision images up to 250 ft.

• Conventional sonar performance up to 600 ft.

• Lighting fast chart redraws with dedicated graphics co-processor

• Built-in high performance 50 channel GPS sensor with fast-acquisition technology

• Innovative design combines large display area and small mounting footprint

In the Box:

• Raymarine Dragonfly 7" Sonar/GPS Display

• Tilt/Swivel mounting bracket

• True Dual Beam Transom Mount Transducer assembly with mounting bracket and sealing cap

• User Guide

Specifications:

• Nominal supply voltage: 12V

• Operating Voltage Range: 10.2 - 16.6V

• Waterproofing standard: IPX6 and IPX7

• Display size: 7" (4:3 aspect ratio)

• Display resolution: 800x480 WVGA

• Color depth: 24 bit

• Chart Compatibility: Navionics

• Connections: Power/transducer combined input

• Frequency 200 kHz Sonar and 350 kHz Down Vision

Basemap = Yes | Card Format = Micro SD | Cartography - Preloaded = No | Cartography Brand = Navionics | Cartography Type = Gold/HotMaps Premium | Frequency = NONE | Included Transducer = Yes | Internal/External Antenna = Internal | Resolution (VxH) = 800x480 WVGA | Screen Size = 7" | Screen Type = Color | Speed/Temp = NONE | Touchscreen = No | Transducer Type = Transom Mount | Waterproof Rating = Waterproof | Watts RMS - Max = NONE | Waypoints/Routes = 3000/150 | Weather Capable = NONE
