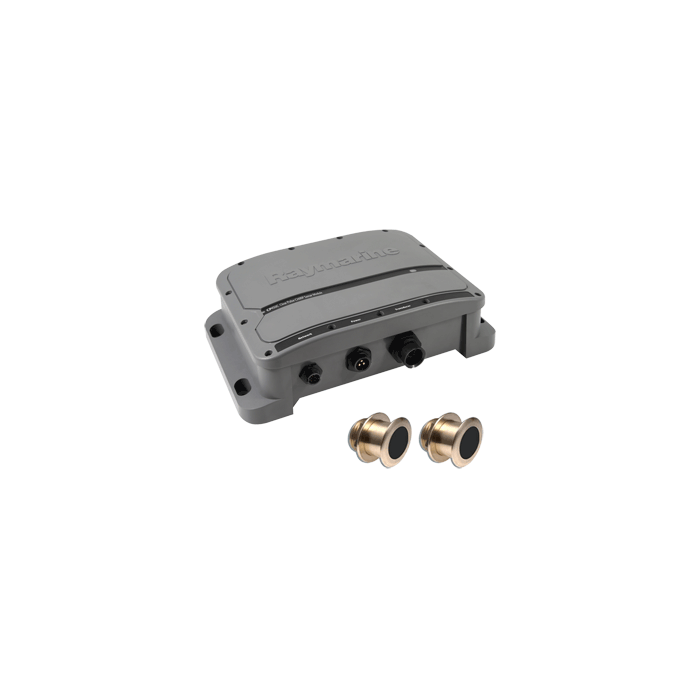

Raymarine CP450C w/B75 LH Bronze Thru Hull Transducer - 0° - Tilted Pair T70219

Raymarine CP450C w/B75 LH Bronze Thru Hull Transducer - 0° - Tilted Pair

CP450C with B75 LH Bronze Thru Hull Transducer - 0° - Tilted Pair

CP450C
The CP450C with ClearPulse CHIRP technology goes beyond high definition and offers increased resolution and deeper depths.

Features:

• TruZoom™ mode for a precise magnified view of fish targets, bottom structure and baitfish without any loss of resolution seen with traditional sonar

• High-speed scrolling (Fast Ping Rate) with 60 pulses a second and enhanced shallow water and high-speed operation

• Power supply monitoring - useful when drifting and you have no battery charge

• SeaTalkhs Ethernet network port - waterproof Raynet connector

• Network compatible with e7 and future Raymarine network multifunction displays

• 2 independently adjustable channels (two sonars in one). Each channel can be customized to specific frequency bands along with independent manual and auto adjustment settings

• Low, medium and high frequencies for excellent performance
  at all depths

• Supports CHIRP transmissions from 25 to 250kHz with exclusive mid-band frequency support in the 75 to 130 kHz range as well

B75 LH Thru Hull Transducers

Features:

• Depth/Temp

• Thru Hull

• Beam Angle: 0°

• Bronze

• CP450C Plug on Cable - Requires Y-Splitter Cable (Included)

• Power: 600W

• Frequency: L = 40-75 kHz, H=130-210 kHz

• Low: 32° to 21° beamwidth

• High: 15° to 9° beamwidth

• Hull type: Fiberglass or wood

Audio Capable = NONE | Frequency = NONE | Load Equivalence # (LEN) = NONE | Service Carrier = NONE | Waterproof Rating = NONE | Watts RMS - Max = NONE
