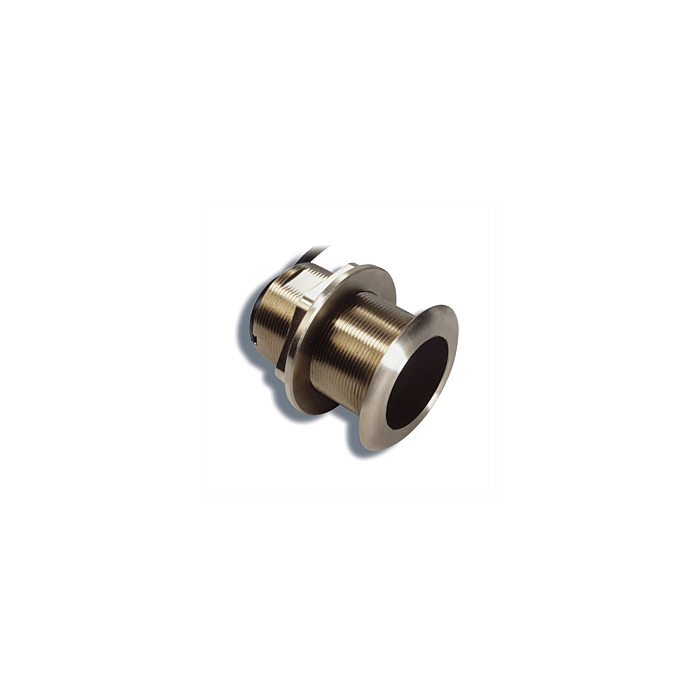

Raymarine B60-12 12 Degree Tilted Element - A Series E66088

B60 Tilted Element™ 12°

12° titled version is designed for 8° - 15° deadrise angles


The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze
