Raymarine B175L Bronze Low Profile Thru A80048
$1,850.21
In stock
SKU
JMS302649

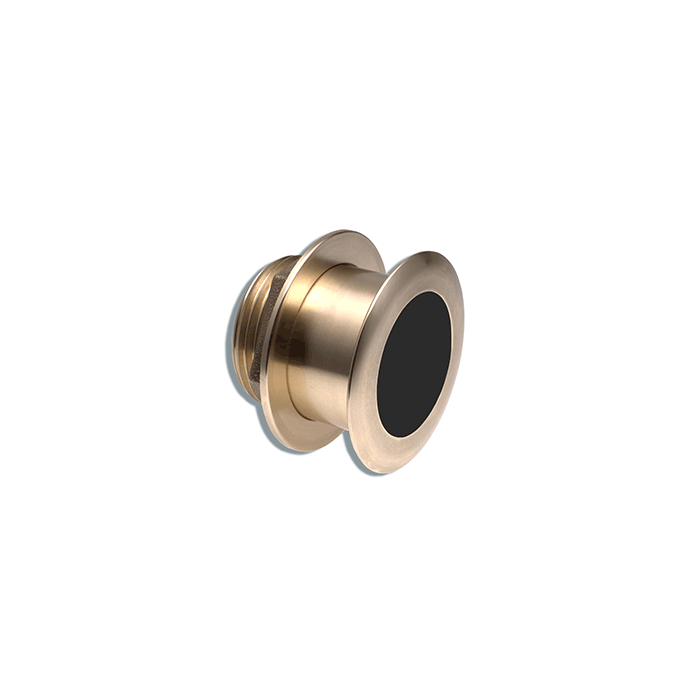

Raymarine B175L Bronze Low Profile Thru A80048
B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW
Features
Features
- Material: Bronze
- For use with CP450C or CP470 Chirp Sonar Module
- Power (RMS): 1Kw
- Max Depth(ft): 2,500
- Frequency (khZ): 40-60
- Beam Width(L/H): 32°-21°
- Records: Depth / Temperature
- Approved Hull Material: Fiberglass / Wood
- Cable Length (Ft/M): 33ft / 10M
- Supported Deadrise / Transom Angles: 16-24° Deadrise
- Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable
| UPC Code | 723193729113 |
|---|---|
| Manufacturer Part Number | A80048 |
| Manufacturer | Raymarine |
