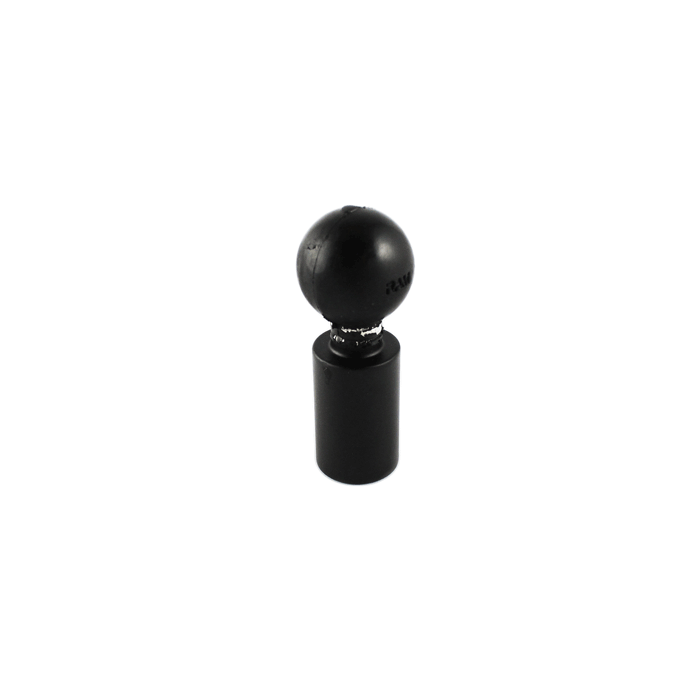

RAM Mount 1/4" NPT Female Threaded Hole Base w/1" Ball RAMB2181U

RAM 1/4" NPT Female Threaded Hole Base w/1" Ball

The RAM-B-218-1U consists of a 1" ball and 0.25" NPT female thread. This part connects to any 0.25" NPT male thread, including RAM-PF-585-X flex arm series mounts and RAM-PA54XX rigid arm series mounts.

NPT Thread and Pipe Sizing:
NPT (National Pipe Thread) is a standard used in joining pipes and fittings that have a tapered thread. As a general rule, the NPT inch size is the inside diameter of the threaded pipe and is known as the NPS (Nominal Pipe Size). The outer diameter (OD) of the pipe is shown below:

NPT Size (NPS)	Pipe Outer Dia. (OD)	Threads per inch
0.25"	0.540"	18
0.50"	0.840"	14
1"	1.315"	11.5

Material:
Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.
