Quick Ultra Genius 600 Free-Fall - 500W, 12V FSGU0600F007C01

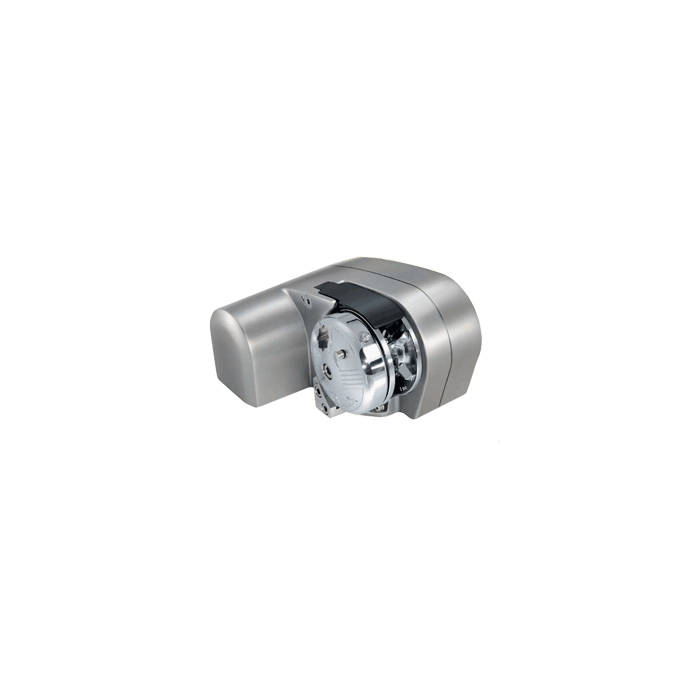

Ultra Genius 600 Free Fall

The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button the windlass will release its clutch and the gypsy will freewheel. To stop the FreeFall depress the up control button on the windlass; the clutch will engage stopping the gypsy and allowing retrieval of the chain. The Free-Fall function can be bypassed to facilitate power controlled release.

Features:

• On-deck windlasses in anodized alluminium in hard oxide

• Rope and chain on a single gypsy

• Automatic Free-Fall system

• Supplied with pressure lever

• Epicyclical gearbox - The Ultra Genius range is equipped with an epicyclical gearbox, that provides much higher efficiency (-40% compared to equivalent traditional gearboxes)

• For boats 20-29 ft.

Specs:

• Chain Size: 1/4"

• Rope Size: 1/2" - 9/16"

• Motor Power: 500W

• Motor Supply Voltage: 12 V

• Maximum Pull: 1499.1 lb

• Maximum Working Load: 551.1 lb

• Working Load: 187.4 lb

• Current Absorption @ Working Load: 40 A

• Maximum Chain Speed: 48.2 ft/min
