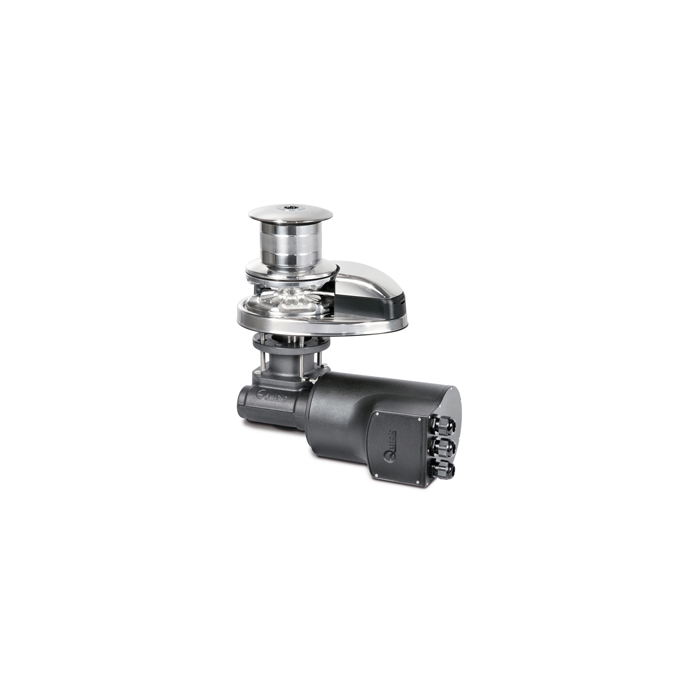

Quick Prince DP3 1512D Windlass w/Drum 1500W - 12V - 10mm or 3/8" Gypsy
$3,050.00
Out of stock
SKU
JMS257911
Quick Prince DP3 1512D Windlass w/Drum 1500W - 12V - 10mm or 3/8" Gypsy
Quick Prince DP3 1512D Windlass w/Drum - 1500W - 12V - 10mm or ⅜" Gypsy
Features
Amps - Draw = NONE | Boat Length - Max (Feet) = 39-49' | Chain - Type = NONE | Freefall = Yes | Rope Diameter (Inches) = 5/8" | Vertical/Horizontal = Vertical
Category: Boat Outfitting | Windlasses
Manufacturer Part Number: FSDP31512D10C01
Features
- 1500W, 12V, 10mm or ⅜" Gypsy
- Maximum Pull - 2425.1lb
- Maximum Working load - 1036.2lb
- Working load - 352.7lb
- Maximum Chain Speed (2) - 95.8 ft/min
- Maximum Chain Speed @ working load (2) - 53.4 ft/min
- Vertical windlasses
- With Drum
- Stainless steel Aisi 316 base
- Rope and chain on a single gypsy
- Manual Free-Fall system
- Supplied with pressure lever, up/down switch, circuit breaker
- Inspection cover
- Motor watertight to IP67
- Anodized aluminium gearbox
Amps - Draw = NONE | Boat Length - Max (Feet) = 39-49' | Chain - Type = NONE | Freefall = Yes | Rope Diameter (Inches) = 5/8" | Vertical/Horizontal = Vertical
Category: Boat Outfitting | Windlasses
Manufacturer Part Number: FSDP31512D10C01
| UPC Code | 8057090990096 |
|---|---|
| Manufacturer Part Number | FSDP31512D10C01 |
| Manufacturer | Quick |
