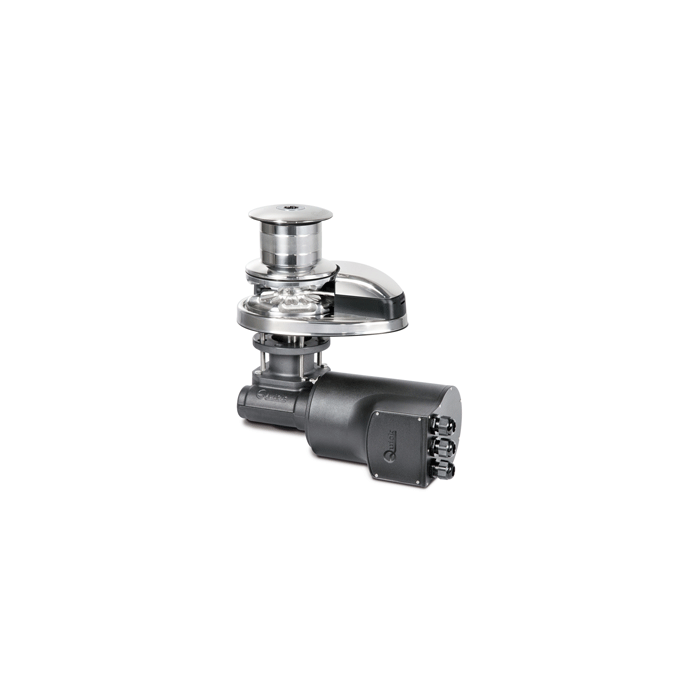

Quick Prince DP3 1012D Windlass w/Drum 1000W - 12V - 8mm or 5/16" Gypsy
$2,300.00
Out of stock
SKU
JMS257909
Quick Prince DP3 1012D Windlass w/Drum 1000W - 12V - 8mm or 5/16" Gypsy
Quick Prince DP3 1012D Windlass w/Drum - 1000W - 12V - 8mm or 5/16" Gypsy
Features
Amps - Draw = NONE | Boat Length - Max (Feet) = 33-43' | Chain - Type = NONE | Freefall = Yes | Rope Diameter (Inches) = 9/16" | Vertical/Horizontal = Vertical
Category: Boat Outfitting | Windlasses
Manufacturer Part Number: FSDP31012D08C01
Features
- 1000W, 12V, 8mm or 5/16" Gypsy
- Maximum Pull - 2204.6lb
- Maximum Working load - 815.7lb
- Working load - 264.5lb
- Maximum Chain Speed (2) - 121 ft/min
- Maximum Chain Speed @ working load (2) - 67 ft/min
- Vertical windlasses
- With Drum
- Stainless steel Aisi 316 base
- Rope and chain on a single gypsy
- Manual Free-Fall system
- Supplied with pressure lever, up/down switch, circuit breaker
- Inspection cover
- Motor watertight to IP67
- Anodized aluminium gearbox
Amps - Draw = NONE | Boat Length - Max (Feet) = 33-43' | Chain - Type = NONE | Freefall = Yes | Rope Diameter (Inches) = 9/16" | Vertical/Horizontal = Vertical
Category: Boat Outfitting | Windlasses
Manufacturer Part Number: FSDP31012D08C01
| UPC Code | 8057090990072 |
|---|---|
| Manufacturer Part Number | FSDP31012D08C01 |
| Manufacturer | Quick |
