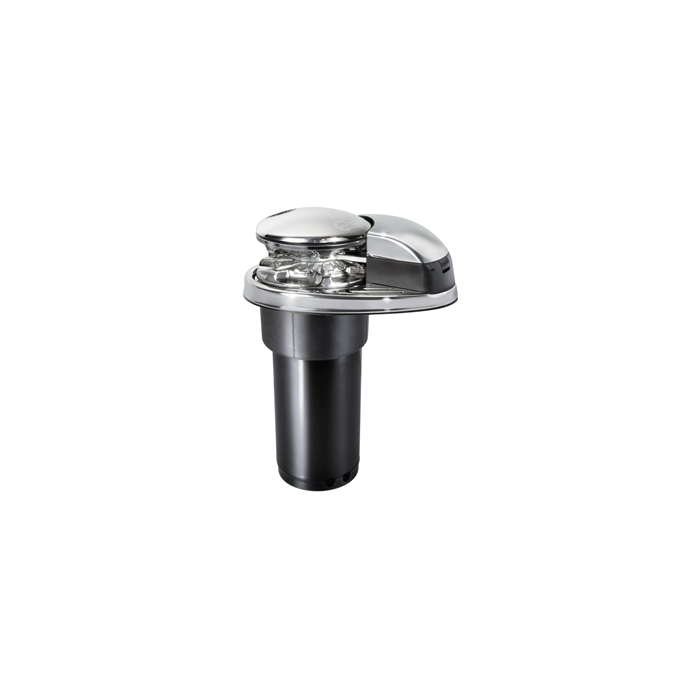

Quick Prince DP2E 600 Windlass 500W - 12V - 7mm or 1/4" Gypsy

Quick Prince DP2E 600 Windlass - 500W - 12V - 7mm or ¼" Gypsy

The DP2E windlass is equipped with an epicyclical gearbox, that provides much higher efficiency (40% compared to equivalent traditional gearboxes).

Features

• 500W, 12V, 7mm or ¼" Gypsy

• Maximum Pull - 1366.9lb

• Maximum Working load - 440.9lb

• Working load - 143.3lb

• Maximum Chain Speed (2) - 75.1 ft/min

• Maximum Chain Speed @ working load (2) - 61 ft/min

• Vertical windlasses

• Stainless steel Aisi 316 base

• Rope and chain on a single gypsy

• Manual Free-Fall system

• Supplied with pressure lever, up/down switch, circuit breaker

• Inspection cover

• Motor watertight to IP67

• Anodized aluminium gearbox

Amps - Draw = NONE | Boat Length - Max (Feet) = 20-33 | Chain - Type = NONE | Freefall = Yes | Rope Diameter (Inches) = 1/2" | Vertical/Horizontal = Vertical

Category: Boat Outfitting | Windlasses

Manufacturer Part Number: FSDP2E060007C01
