QUICK PRINCE DP2 712D WINDLASS DRUM 700W 12V 7MM 1/14" GYPSY FSDP20712D07B00

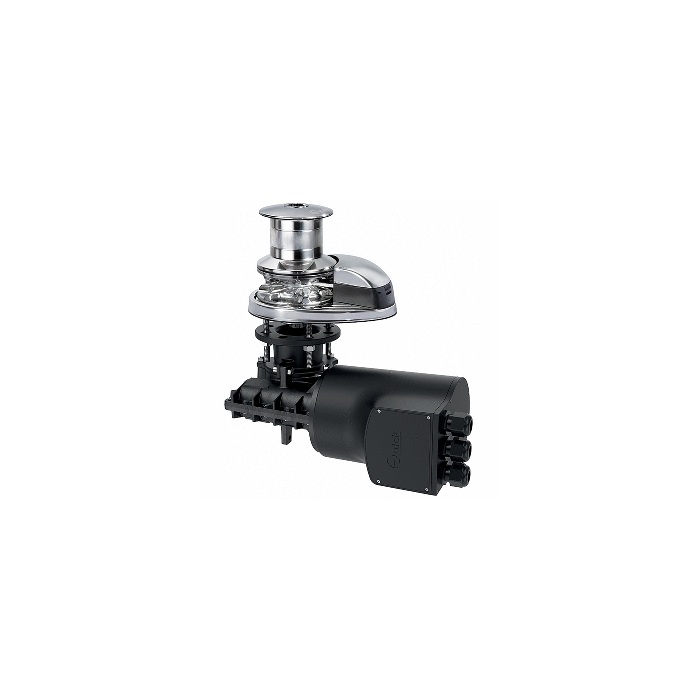

Prince DP2 712D Windlass Drum - 700W - 12V - 7mm - 1/4" Gypsy

The DP2 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle, and mounting hardware.

Specifications:

• Motor Power: 700W
• Motor Supply Voltage: 12V
• Max Pull: 1499lbs
• Max Working Load: 611lbs
• Working Load: 220lbs
• Current absorption @ working load (1): 95 Amp
• Max Chain Speed (2): 75'/min
• Max chain speed @ working load (2): 38'/min
• Weight: 24lbs
• Series: Prince
