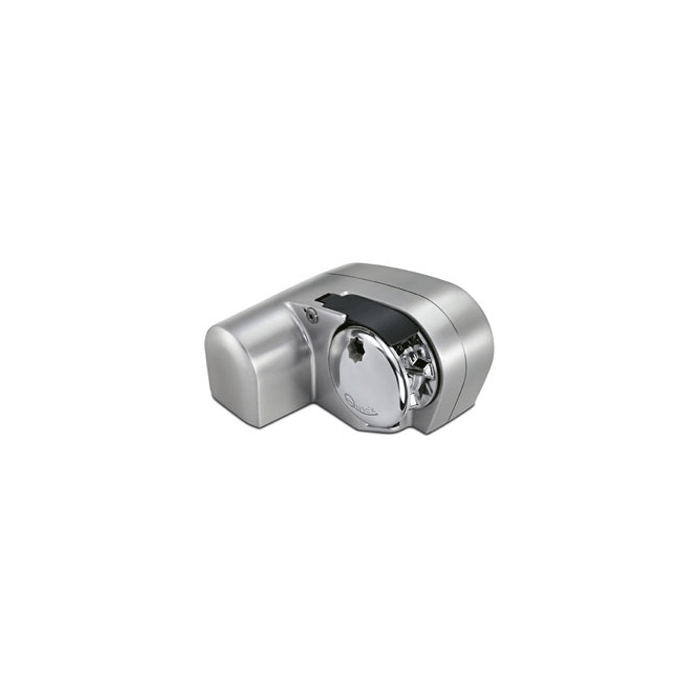

Quick Genius U Windlass G1000U, 800W, 12V, 1/4" Gypsy FSGU10000007C01
$1,930.96
Out of stock
SKU
JMS197280
Quick Genius U Windlass G1000U, 800W, 12V, 1/4" Gypsy FSGU10000007C01
Genius U Windlass G1000U 800W, 12v, 1/14" gypsy kit
Features
On-deck windlasses in anodized alluminium in hard oxide
Rope and chain on a single gypsy
Manual Free-Fall system
Supplied with pressure lever
Epicyclical gearbox
For boats 26-39'
Specifications
Motor power 800 W
Motor supply voltage 12 V
Maximum pull 1983 lb
Maximum working load 771 lb
Working load 265 lb
Current absorbtion @ working load (1) 85 A
Maximum chain speed (2) 99 ft/min
Maximum chain speed @ working load (2) 63 ft/min
Weight - Genius - [without drum] 23 lb
Freefall = NONE | Rope Diameter (Inches) = NONE | Amps - Draw = NONE | Vertical/Horizontal = NONE | Boat Length - Max (Feet) = NONE | Chain - Type = NONE
Features
Specifications
Freefall = NONE | Rope Diameter (Inches) = NONE | Amps - Draw = NONE | Vertical/Horizontal = NONE | Boat Length - Max (Feet) = NONE | Chain - Type = NONE
| UPC Code | 8057090990164 |
|---|---|
| Manufacturer Part Number | FSGU10000007C01 |
| Manufacturer | Quick |
