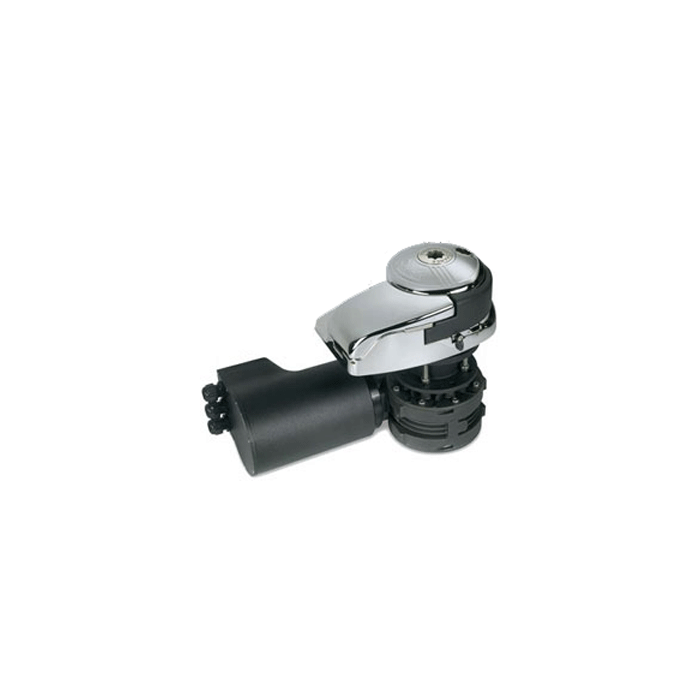

Quick Antares Windlass AT1012 - 12v - 3/8" GYPSY FSAT10120010C01
$2,192.54
Out of stock
SKU
JMS176467
QUICK ANTARES WINDLASS AT1012 1000W 12V 3/8 GYPSY
Antares 1000W, 12V, 3/8" Gypsy
Vertical Windlasses Features
Vertical Windlasses Features
- For boats 33-43 feet
- Gypsy 3/8"
- Motor power 1000 W
- Motor supply voltage 12v
- Maximum pull 2200
- Maximum working load 815 lb
- Working load 264.5 lb
- Current absorbtion @ working load 140A
- Maximum chain speed 121 ft/min
- Maximum chain speed @ working load 67 ft/min
- Weight - Antares - [without drum] 48.3 lb
- chromed-plated bronze base
- Rope and chain on a single gypsy*
- Manual free-fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection cover
- Motor watertight to IP67
- Anodized aluminum gearbox
| Manufacturer Part Number | FSAT10120010C01 |
|---|---|
| Manufacturer | Quick |
