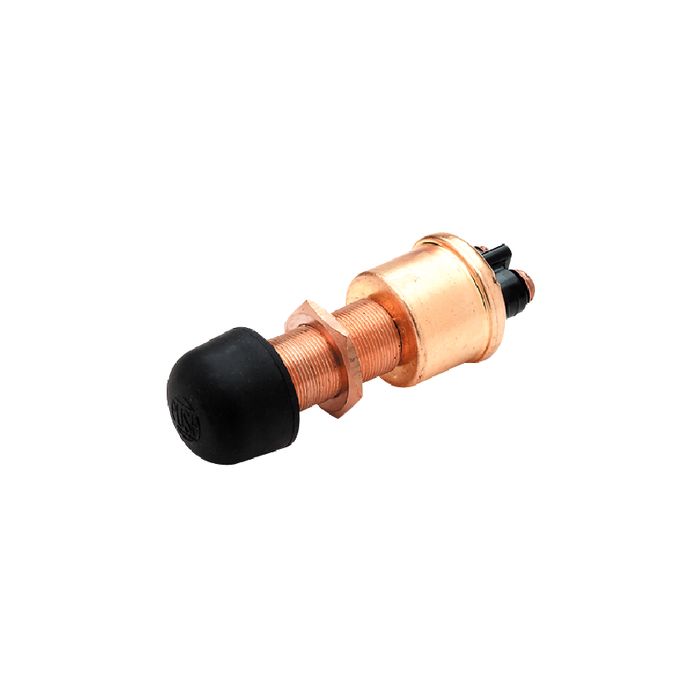

Seachoice Push Button Switch-2 Position SCP-11741

Seachoice Push Button Switch-2 Pos SCP-11741

Heavy Duty 2 Position: Off - Momentary On. Normally"Off" S.P.S.T.
6V - 36V DC. Non-corrosive construction.
11721: Gasket sealed case protects against moisture and dust.
 Brass case, stem, plunger button, terminals and mounting hardware.
 Chrome plated buttons and face nuts. Mounting stem
 1" L , 5/8" - 32 thread dia.

11731: Plasticized body sealed against moisture & dirt.
 Black moisture repellent rubber button cover. Two
 18 gauge wire leads, 12" L.
 Mounting stem 15/16" L, 5/8" - 32 thread dia.

11741: Gasket sealed case protects against moisture and dust.
 Molded plastic insulator with protective barrier between
 terminals. Black moisture repellent rubber button cover. Silver contacts.
 Mounting stem 1-3/8" L, 5/8" - 32 thread dia.

Max Panel Thickness: 1"

SKU: SCP-11741
Category: Electrical > Push Button Switches
