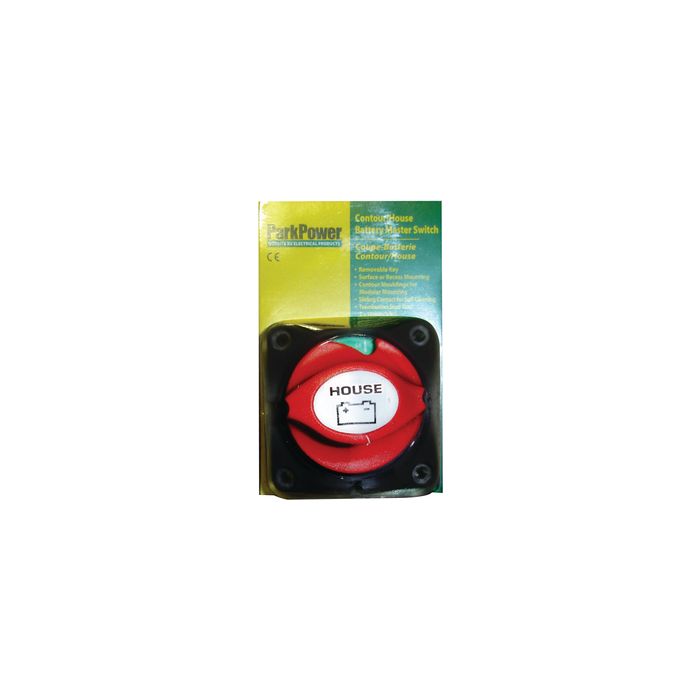

Parkpower House Battery Master Switch PKP 701HBRV

Parkpower House Battery Master Switch

Switches can be used as stand alone units, or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45° position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.

Specifications:

• Continuous Rating: 275 Amps DC


• Intermittent Rating: 455 Amps DC


• Cranking Rating: 1250 Amps DC


• Voltage Rating: 48 Volts DC


• Operation: On/Of


• Recessed or Surface Mount


• Ignition Protected


• Termination Stud Size: 3/8" (2 x 10mm)


• Dimensions: 2.75" x 2.75" x 3"H (69 x 69 x 75mm H)


• Tin plated copper studs and nuts

Description: House Battery

SKU: PKP 701HBRV 679-701HBRV
Manufacturer Part Number: 701HBRV
Category: RV Electrical / Battery Disconnect Switches
