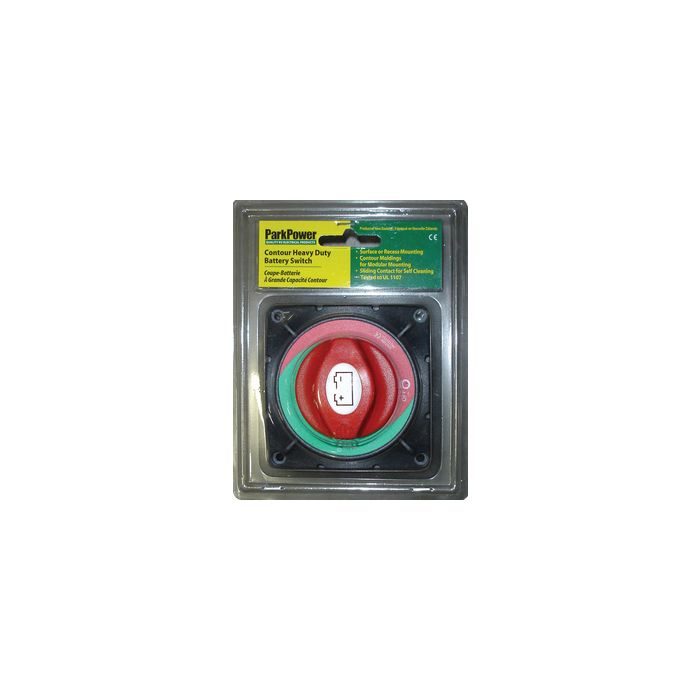

Parkpower Contour H.D.Master Swt.Chasis PKP 701CHRV
$36.19
In stock
SKU
JMS287900
Parkpower Contour H.D.Master Swt.Chasis PKP 701CHRV is available to buy in increments of 1
Parkpower Contour H.D.Master Swt.Chasis PKP 701CHRV
Parkpower Contour H.D.Master Swt.Chasis
Switches can be used as stand alone units, or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45° position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.
Specifications:
- Continuous Rating: 275 Amps DC
- Intermittent Rating: 455 Amps DC
- Cranking Rating: 1250 Amps DC
- Voltage Rating: 48 Volts DC
- Operation: On/Of
- Recessed or Surface Mount
- Ignition Protected
- Termination Stud Size: 3/8" (2 x 10mm)
- Dimensions: 2.75" x 2.75" x 3"H (69 x 69 x 75mm H)
- Tin plated copper studs and nuts
Description: Contour Battery
SKU: PKP 701CHRV 679-701CHRV
Manufacturer Part Number: 701CHRV
Category: RV Electrical / Battery Disconnect Switches
UPC Code | 093344311666 |
---|---|
Manufacturer Part Number | 701CHRV |
Manufacturer | PARKPOWER BY MARINCO |
