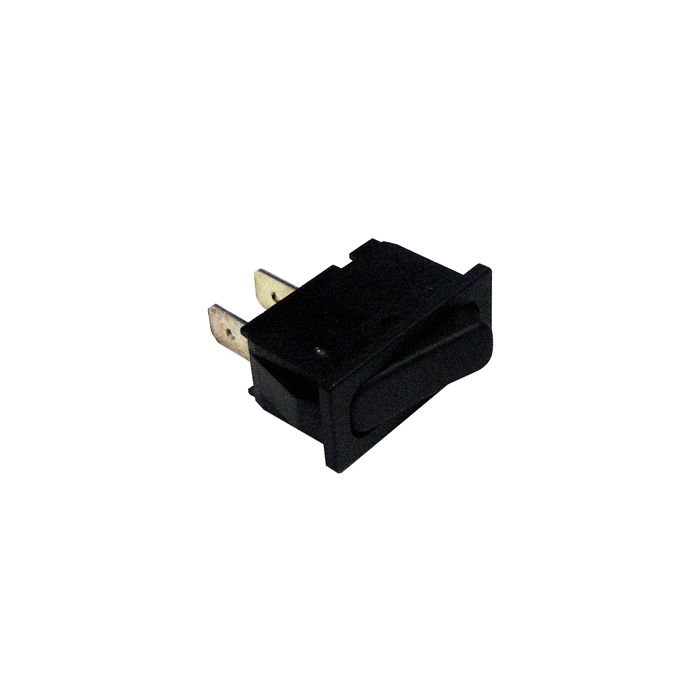

Paneltronics Rocker Switch SPST On/Off 001-251
$13.09
In stock
SKU
JMS134721
Paneltronics Rocker Switch SPST On/Off 001-251 is available to buy in increments of 1
PANELTRONICS SWITCH SPST BLACK ROCKER MAINT
Rocker Switch
Specifications:
- UL Recognized and CSA Certified
- Single Pole Non-Illuminated
- Snap-in Mounting
- Replacement Switches for Paneltronics" Deluxe and Premier Panels
Specifications:
- Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
- Contacts: Silver Plated Copper
- Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
- Operating Temperature: -4 deg. F (-20 deg. C) to 131 deg. F (55 deg. C)
- Housing and Actuator: Black Thermoplastic
- Flammability Rating: UL 94 V-2
- Rated IEC 60529: IP40
- Panel Thickness: 1/8" (3.18 mm)
- Recommended Panel Cut-Out: 1.188" (30.18 mm) x 0.468" (11.89mm)
| UPC Code | 602290100035 |
|---|---|
| Manufacturer Part Number | 001-251 |
| Manufacturer | Paneltronics |
