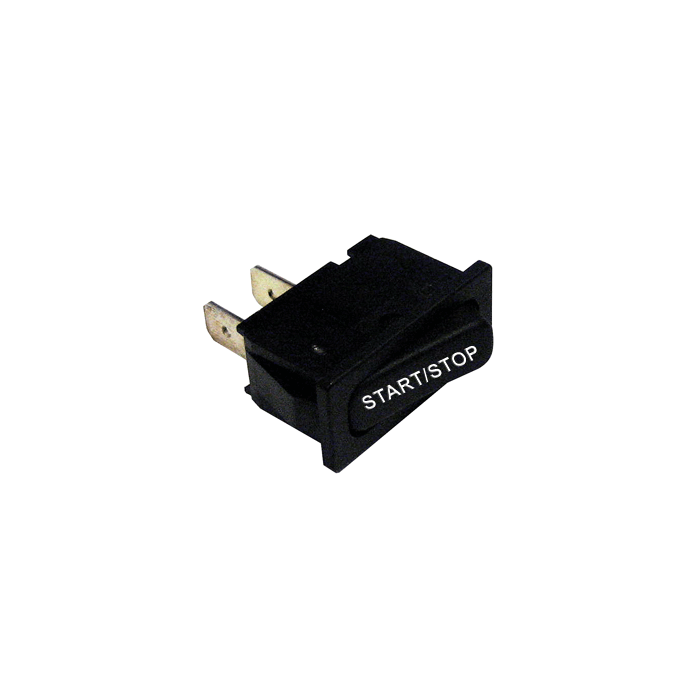

Paneltronics Switch SPDT Start/Stop Rocker 001-330
$15.35
In stock
SKU
JMS134722
Paneltronics Switch SPDT Start/Stop Rocker 001-330 is available to buy in increments of 1
PANELTRONICS SWITCH SPDT START /STOP ROCKER
Rocker Switch
Specifications:
- UL Recognized and CSA Certified
- Single Pole Non-Illuminated
- Snap-in Mounting
- Replacement Switches for Paneltronics" Deluxe and Premier Panels
Specifications:
- Maximum Contact Rating: 6 Amps @ 125VAC or 4 Amps @ 250VAC
- Contacts: Silver Plated Copper
- Terminals: Silver Plated Copper 1/4" (6.3mm) Quick Connects
- Operating Temperature: -4 deg F (-20 deg C) to 131 deg F (55 deg C)
- Housing and Actuator: Black Thermoplastic
- Flammability Rating: UL 94 V-2
- Rated IEC 60529: IP40
- Panel Thickness: 1/8" (3.18mm)
- Recommended Panel Cut-Out: 1.188" (30.18mm) x 0.468" (11.89mm)
| UPC Code | 602290100059 |
|---|---|
| Manufacturer Part Number | 001-330 |
| Manufacturer | Paneltronics |
