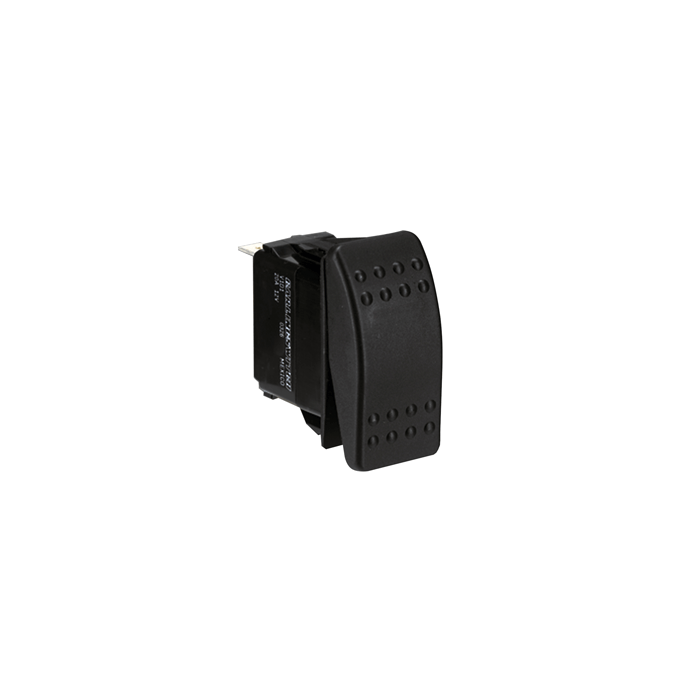

Paneltronics Switch DPDT Hard (On)/Off/(On) Rocker 001-453
$13.05
In stock
SKU
JMS134723
Paneltronics Switch DPDT Hard (On)/Off/(On) Rocker 001-453 is available to buy in increments of 1
PANELTRONICS SWITCH DPDT HARD (ON)/OFF/(ON) ROCKER
Rocker Switches (Waterproof Contura)
- Single or double pole, and maintaining or momentary configurations are available
- Sealed IP68 rated per IEC 529
- Ignition protection construction meets requirements of UL 1500 and ISO 8846
- Black textured actuators (Hard surface with bumps)
- Red incandescent 12VDC 80 mA Status Indicators
- Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
- DC moisture resistant Per Mil-Std 202F, Method 107F
- Optional rubber gaskets provide a watertight panel seal meets IP67 (P/n 004-176)
- 1/4" male tab terminals are standard without barriers (ABYC E-11-14.5.4 Exception)
- Hole plug - Black (P/N 001-295)
| UPC Code | 602290100080 |
|---|---|
| Manufacturer Part Number | 001-453 |
| Manufacturer | Paneltronics |
