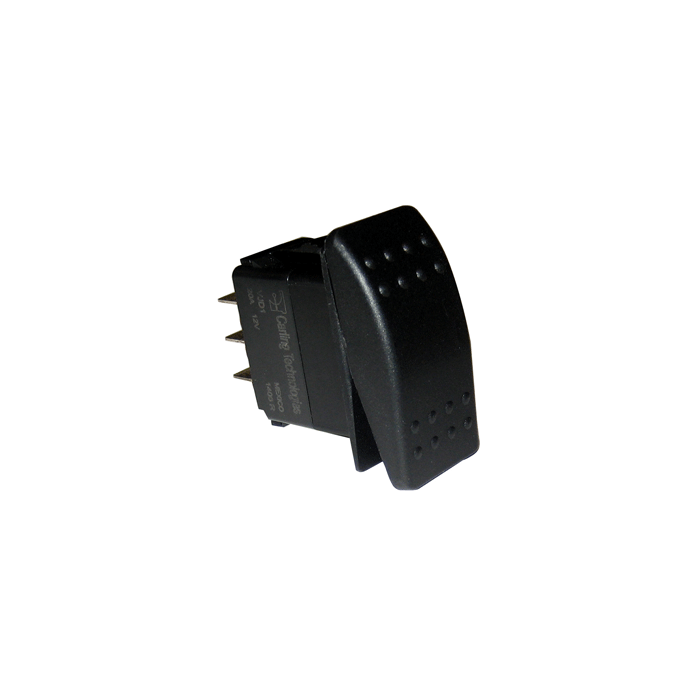

Paneltronics Switch DPDT Black On/Off/On Waterproof Rocker 001-455
$18.46
In stock
SKU
JMS134724
Paneltronics Switch DPDT Black On/Off/On Waterproof Rocker 001-455 is available to buy in increments of 1
PANELTRONICS SWITCH DPDT BLACK ON/OFF/ON WATERPROOF ROCKER
Rocker Switch (Waterproof Contura)
- Single or double pole, and maintaining or momentary configurations are available
- Sealed IP68 rated per IEC 529
- Ignition protection construction meets requirements of UL 1500 and ISO 8846
- Black textured actuators (Hard Surface with Bumps)
- Red incandescent 12VDC 80mA Status Indicators
- Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
- DC moisture resistant Per Mil-Std 202F, Method 107F
- Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176)
- 1/4" male tab terminals are standard without the barries (ABYC E-11-14.5.4 Exception)
- Hole plug black (P/N 001-295)
| UPC Code | 602290101100 |
|---|---|
| Manufacturer Part Number | 001-455 |
| Manufacturer | Paneltronics |
