Paneltronics Digital Meter 12 VDC Amps 570-002-12VB
$159.95
Out of stock
SKU
JMS178088

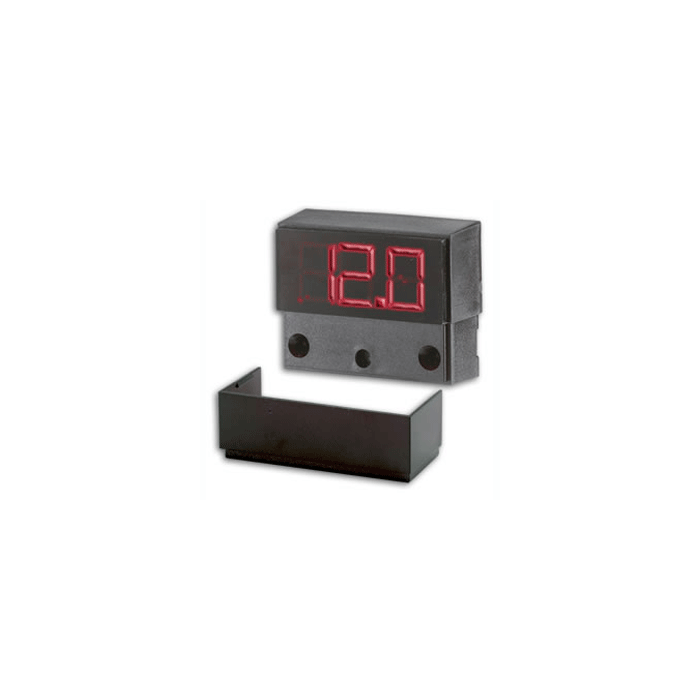

PANELTRONICS DIGITAL METER 12 VDC AMPS
Digital DC Ammeter - 0-100DCA 12 Volts System
Specifications:
- Monitor marine/land based power distribution & generating systems (ABYC E-11.9.3.2.)
- AC voltmeter and AC ammeter are true RMS (ABYC E-11.9.3.2.)
- Surface mount with only two 5/32" diameter holes
- Window mount in standard 2.5" analog meter cutout (2.90" W X 1.28" H)
- Three digit LED display (Frequency meters are two digits)
- Reversed Polarity Protected
- Splashproof front
- Includes pigtails, mounting hardware, & instructions
Specifications:
- Display Character Size: 9/16"
- Input Voltage: 8-32VDC
- Power Consumption: 1Watt 12VDC
- Accuracy: +/- 1 Count
- Operating Temperature Range: 32-122 deg. F
- Dimensions: 3.08"W, 2.38"H, 1.0"D
| UPC Code | 602290303078 |
|---|---|
| Manufacturer Part Number | 570-002-12VB |
| Manufacturer | Paneltronics |
