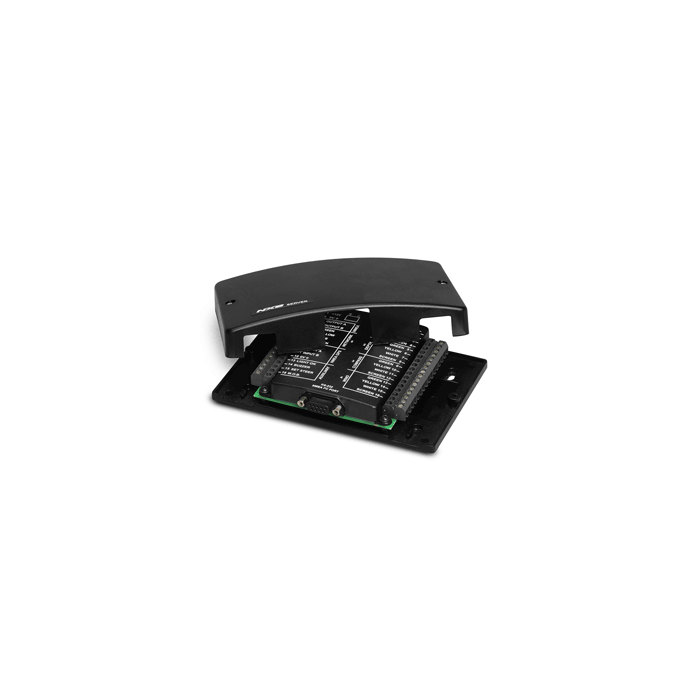

Nexus NX2 Server

Nexus Nexus Server

The Nexus Server functions as a terminal station for the Nexus Network to which all transducers, NMEA input and output are connected. Furthermore, the Server has outputs for external M.O.B. (Man Over Board) and trim buttons and an external alarm. All screw terminals are clearly marked for easy installation. The NX2 unique plug wiring system enables a tidy and clean installation below deck with no excess cables.

Specifications:

• Dimensions: 110x165x30 mm (4.3x6.5x1.2")

• Weight: 220g (7.8oz)

• Enclosure: Splash proof

• Cable: RS-232 cable and Serial to USB converter, power cable

• Power supply: 12V DC (10-16V)

• Current consumption: 27mA at 12V

• Communication in: Nexus Network, NMEA and NMEA/FDX

• Communication out: Nexus Network, NMEA and NMEA/FDX

Shape = NONE | Screen Size = NONE | Load Equivalence # (LEN) = NONE | Digital/Analog = NONE

Category: Marine Instruments | Instruments - Multi & Repeaters

Manufacturer Part Number: 22120-11
