Nexus TH43 Log Transducer w/8M Cable 20707

Nexus TH43 Log Transducer w/8M Cable

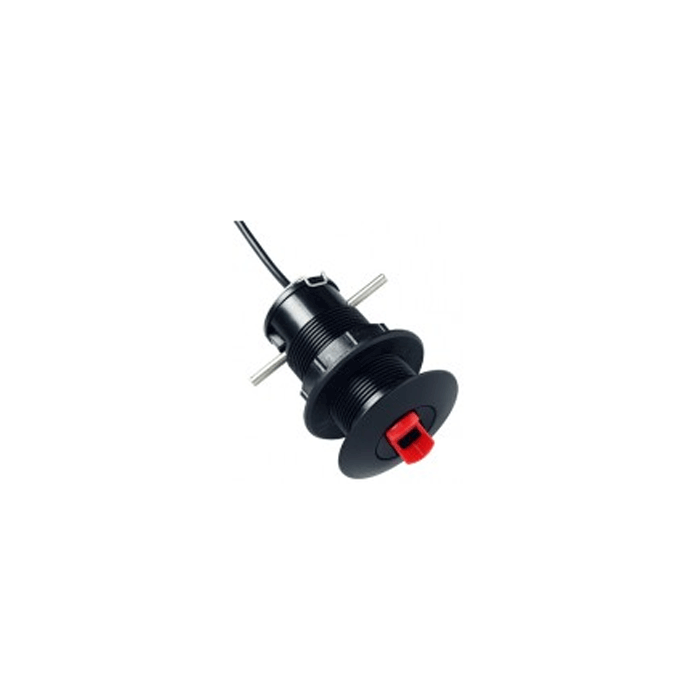

TH43 Log Transducer

The Log Transducer measures boat speed, distance and water temperature. The unique paddle wheel construction provides very accurate data, plus the retractable thru-hull transducer makes it easy to clean the paddle wheel. Dummy plug included.

Specifications:

• Dimensions: 92mm x 43mm

• Weight: 320g (11.3oz)

• Enclosure: IPX7

• Cable: 8m (26.2ft)

• Power Supply: 12VDC (10V-16V)

• Current Consumption: 20mA at 12V

• Speed Range: 0-30kts (km, mph)

• Temp Measure Range: -5° to +40° C (23° to +104° F)

Beam Width = NONE | Cable Length (Feet) = 8m | Fairing Block Included = NONE | Frequency = NONE | Load Equivalence # (LEN) = NONE | Mounting Style = NONE | Pins = NONE | Speed Included = Yes | Temperature = Yes

Marine Instruments | Transducers
