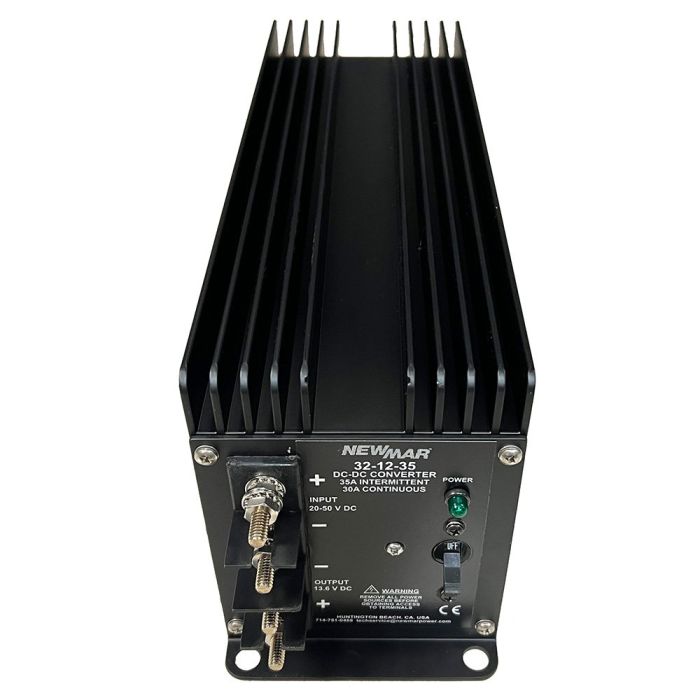

NEWMAR 32-12-35 DC CONVERTER

NEWMAR 32-12-35 DC CONVERTER 32-12-35 DC Converter Convert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.) Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter & Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 20-50 Output Voltage: 13.6 Output Amps (Intermittent): 35 Output Amps (Continuous): 30 Case Size (H x W x D):
