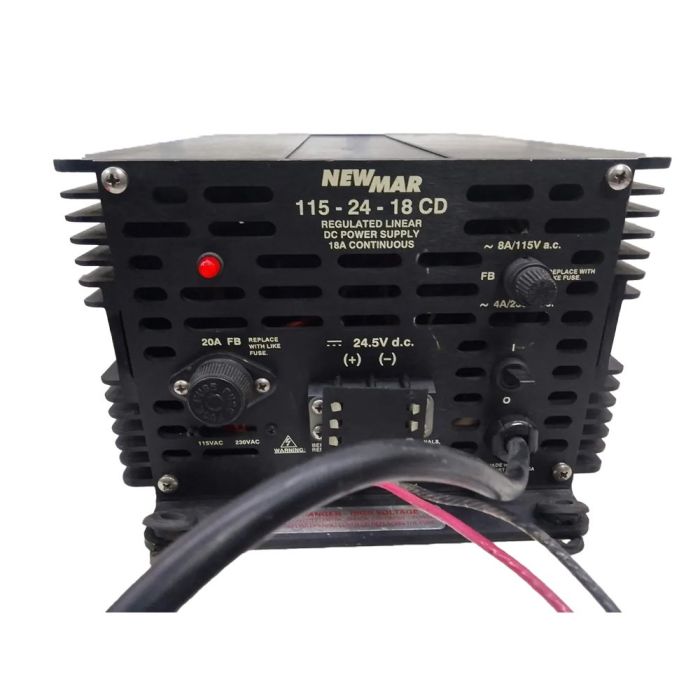

NEWMAR 115-24-18CD POWER SUPPLY

NEWMAR 115-24-18CD POWER SUPPLY 115-24-18CD Power Supply This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life. Features: Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions) Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing Thermally activated cooling fan on CD units Specifications: Nominal Input/VAC: 115/230 Maximum Input Current @115: 5.5 Maximum Input Current @230: 2.5 Output Amperage (Intermittent)
