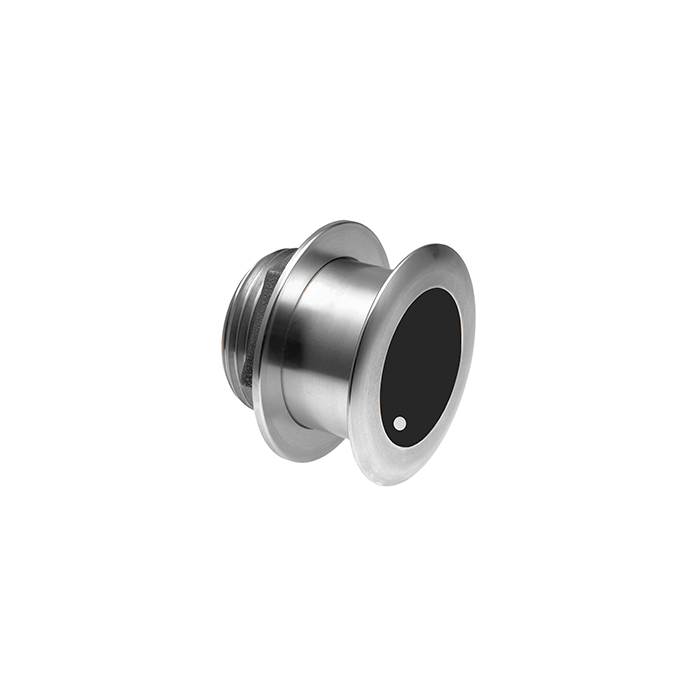

NavicoXSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-Pin 000-13779-001

XSONIC SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 20° Element - 9-Pin

Features:

• Black 9-Pin Connector
• Cable Length - 10M (33.0')
• SS175M - 1-Internal Broadband Ceramic Assembly
• Depth & fast-response water-temperature sensor

• Stainless Steel transducer housing
• Hull Type: Steel or aluminum
• Boat Size: Up to 11M (36’)
• Useable shaft length 71mm (2.80”)

Medium-Frequency (M)

• Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency
